TBS Tracer SIXTY9 - RX+VTX

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

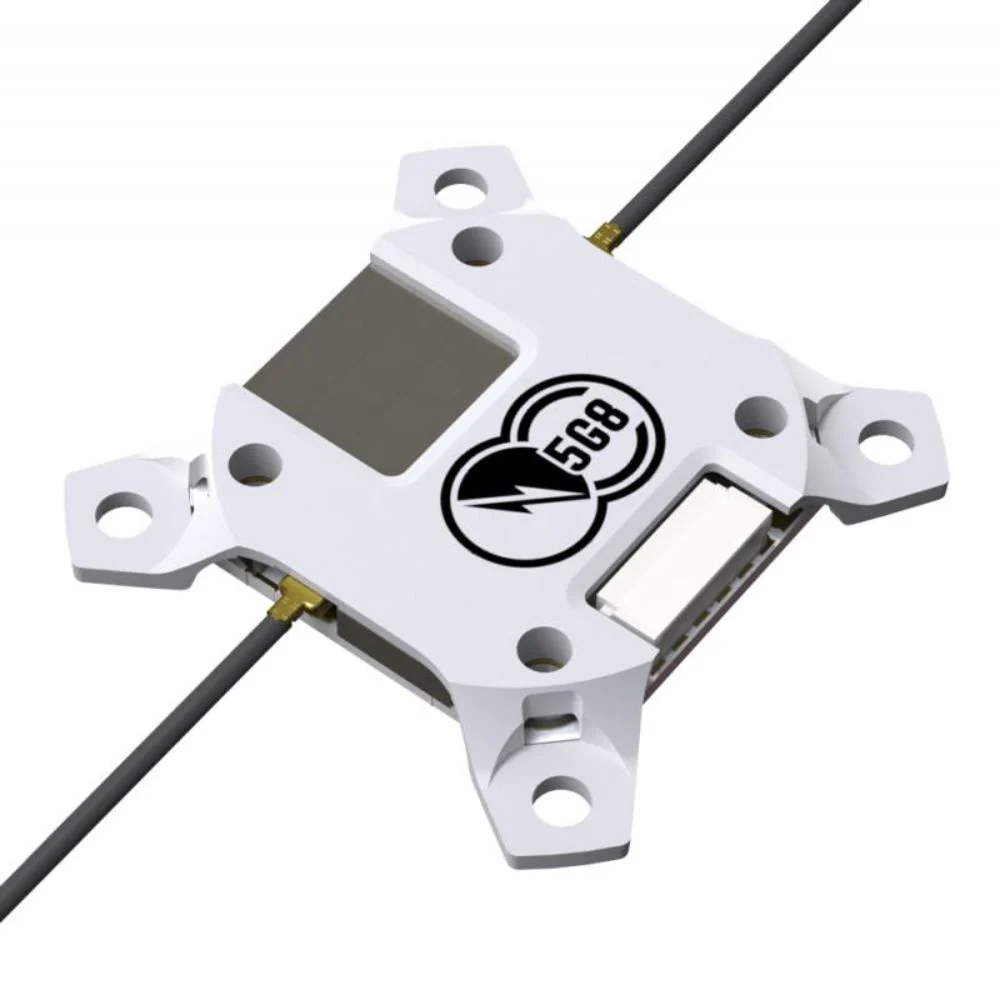

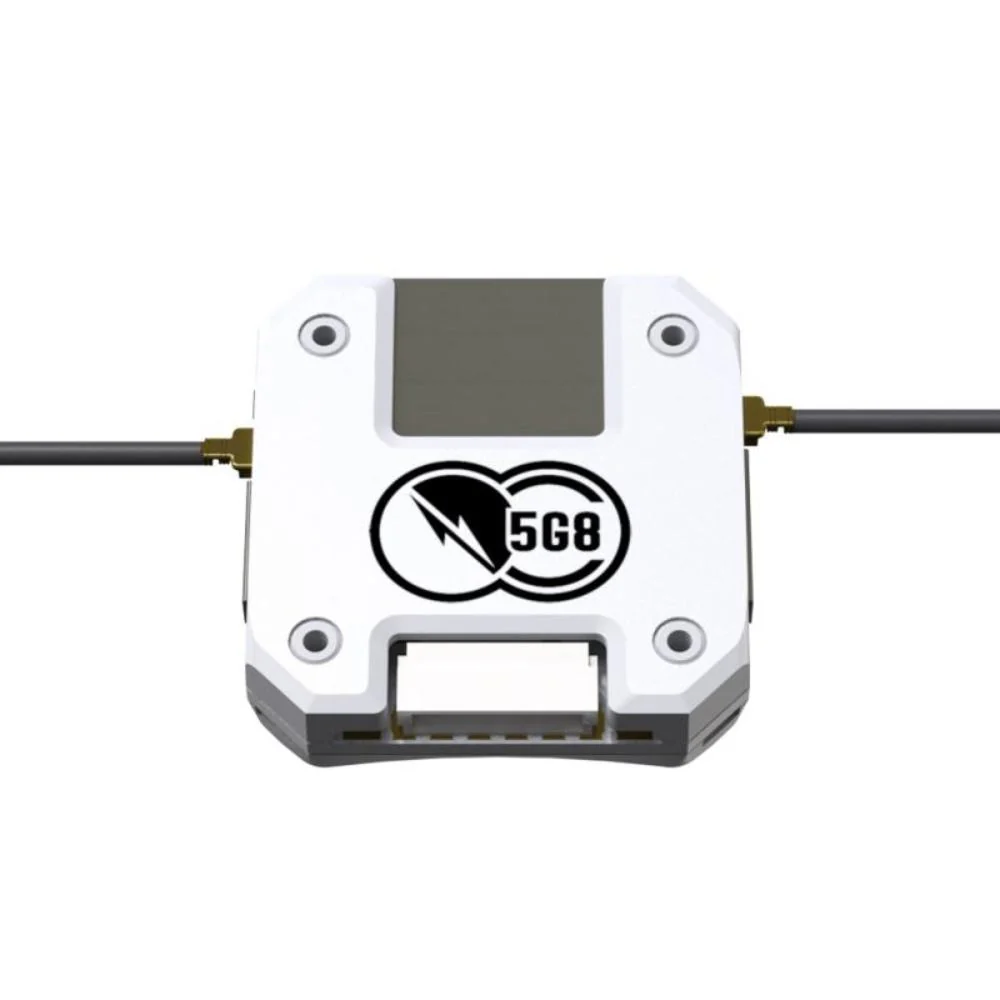

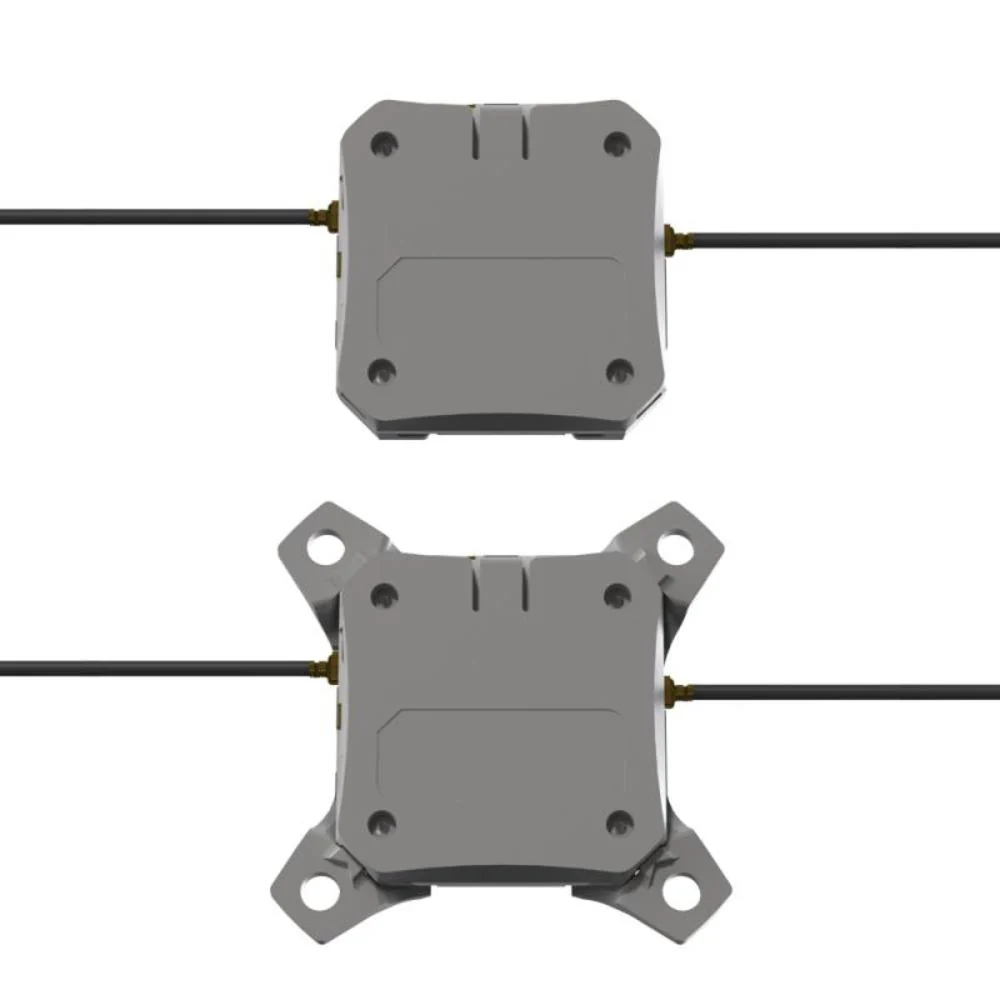

Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame - without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

Check out all ourall our TBS Crossfire Related Gear and the rest of the  TBS Products!

Features:

• Integrated video transmitter control with long range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20x20 mounting form factor
• Plug&play connection and solder pads connectivity

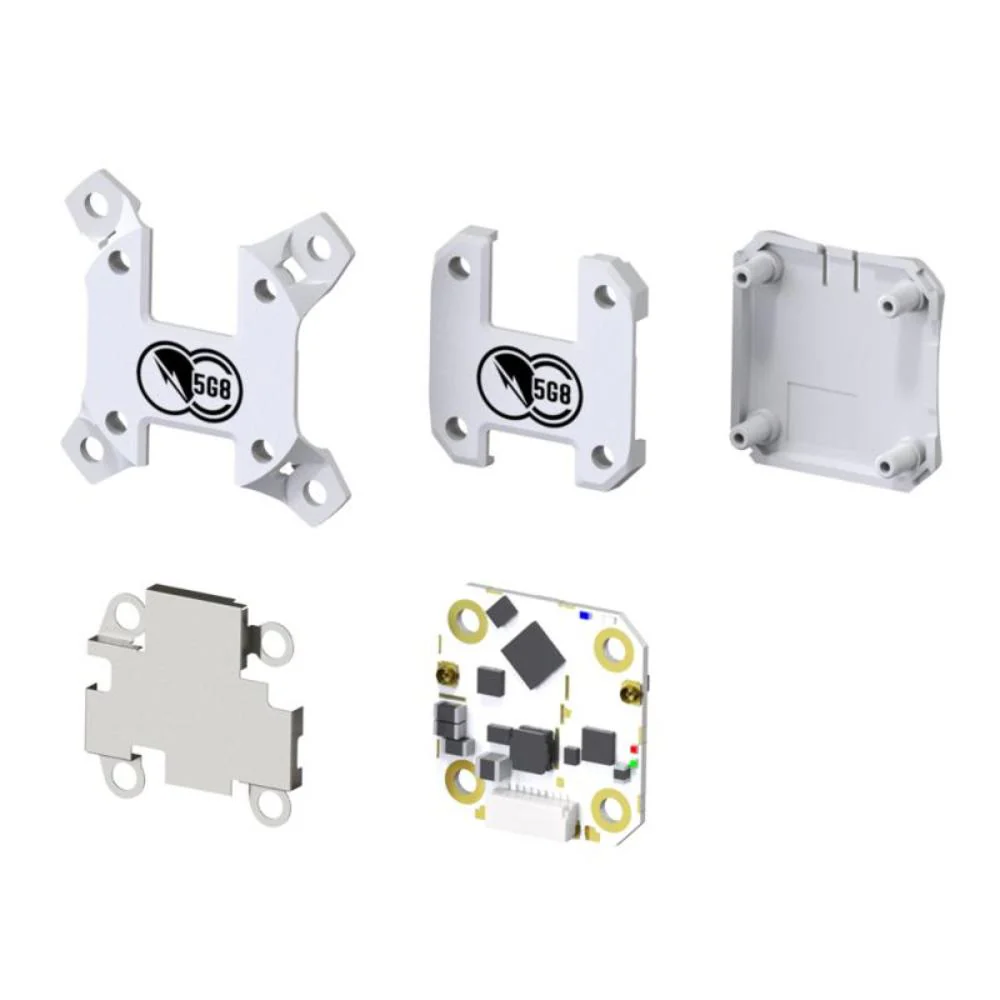

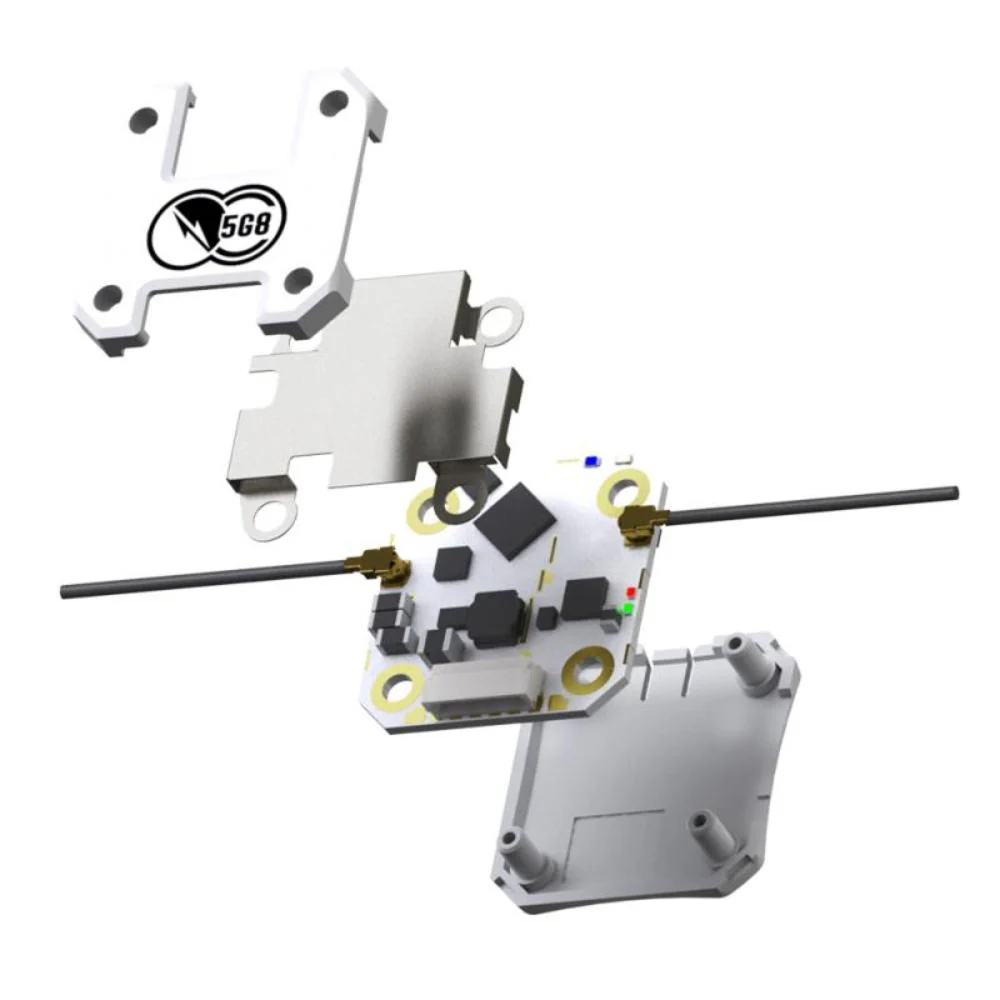

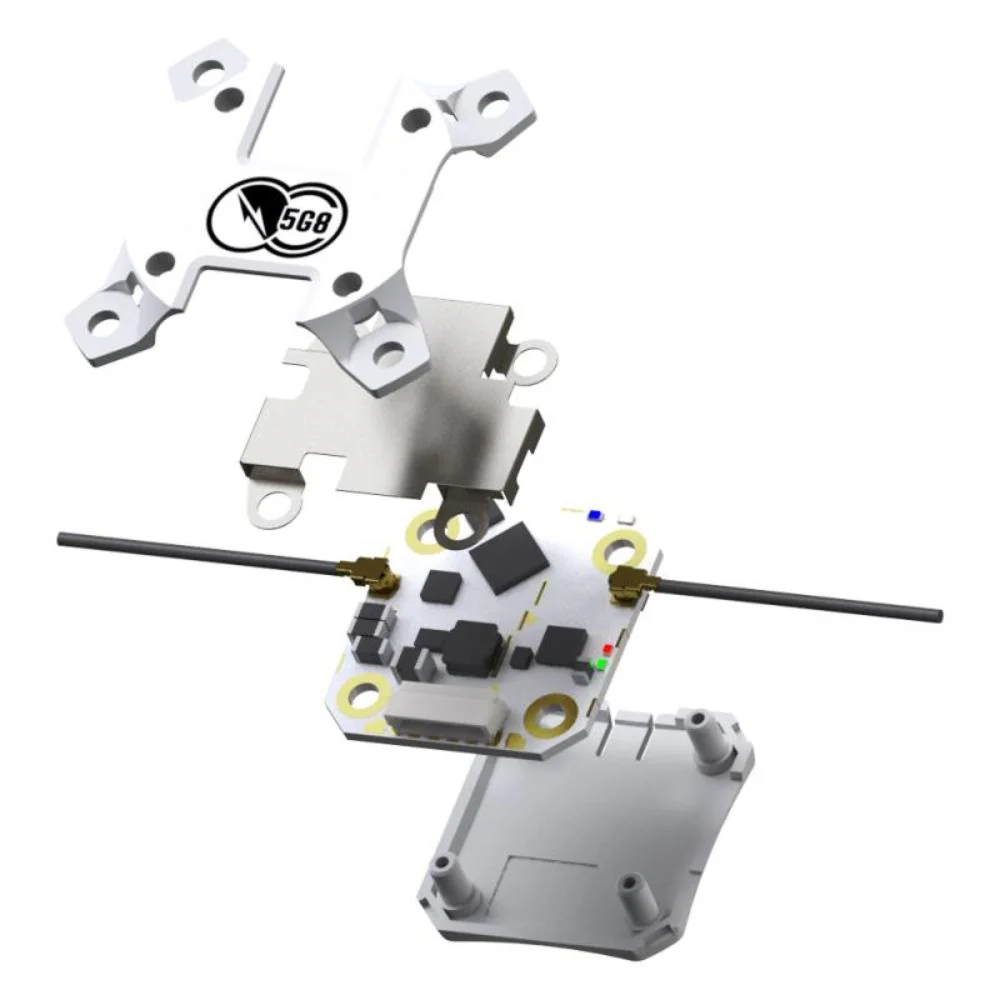

• 3 different mounting flavors, RF tin shields, and other accessories included
• High power analog adjustable video transmitter (up to 1W with perfect cooling)
• 5V regulator bulti-in, takes up to 6S


Specifications:

CRSF	V3 ready
Weight	4.1g (board only)
Antenna ports	1x video transmitter, 1x R/C receiver
Size	24mm x 24mm
Input voltage	6V - 25V (2-6S)
Requires	Firmware V4.62 and above
VTX Table	VTX Table for Betaflight

Package Includes:

• 1x TBS Tracer Sixty9
• 1x TBS Tracer Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)
• 1x 30x30 heatsink / case
• 1x 20x20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector


Downloads:

• TBS Tracer - RED Declaration of Conformity
• TBS Tracer Manual
