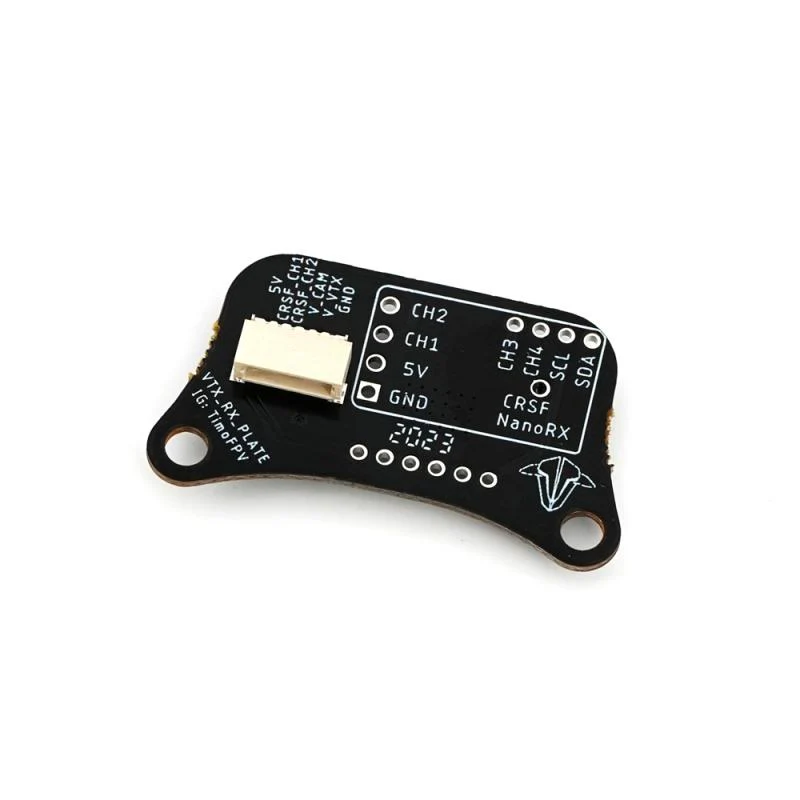

TBS VTx Rx Plate
The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm mounting pattern. It comes with plugs and cables for easy building and maintenance.
Complete this plate with a TBS Nano RX and Unify Nano Pro32
Checkout all our VTX Accessories and our TBS Collection!
*CRSF TX / RX between the VTX and RX are internally wired if you connect all the pins.
Designed by TimoFPV
SPECIFICATION- Weight: 1.7g
- Mounting Holes: M3
- Mounting Holes Distance: 30mm
- Compatibility: TBS Unify Pro32 Nano, TBS Crossfire Nano RX
- 1 x Mounting Plate
- 3 x Pin Headers
- 1 x 3pins plug with silicone wires
- 1 x 6 pins plug with silicone wires
Description
The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm mounting pattern. It comes with plugs and cables for easy building and maintenance.
Complete this plate with a TBS Nano RX and Unify Nano Pro32
Checkout all our VTX Accessories and our TBS Collection!
*CRSF TX / RX between the VTX and RX are internally wired if you connect all the pins.
Designed by TimoFPV
SPECIFICATION- Weight: 1.7g
- Mounting Holes: M3
- Mounting Holes Distance: 30mm
- Compatibility: TBS Unify Pro32 Nano, TBS Crossfire Nano RX
- 1 x Mounting Plate
- 3 x Pin Headers
- 1 x 3pins plug with silicone wires
- 1 x 6 pins plug with silicone wires
