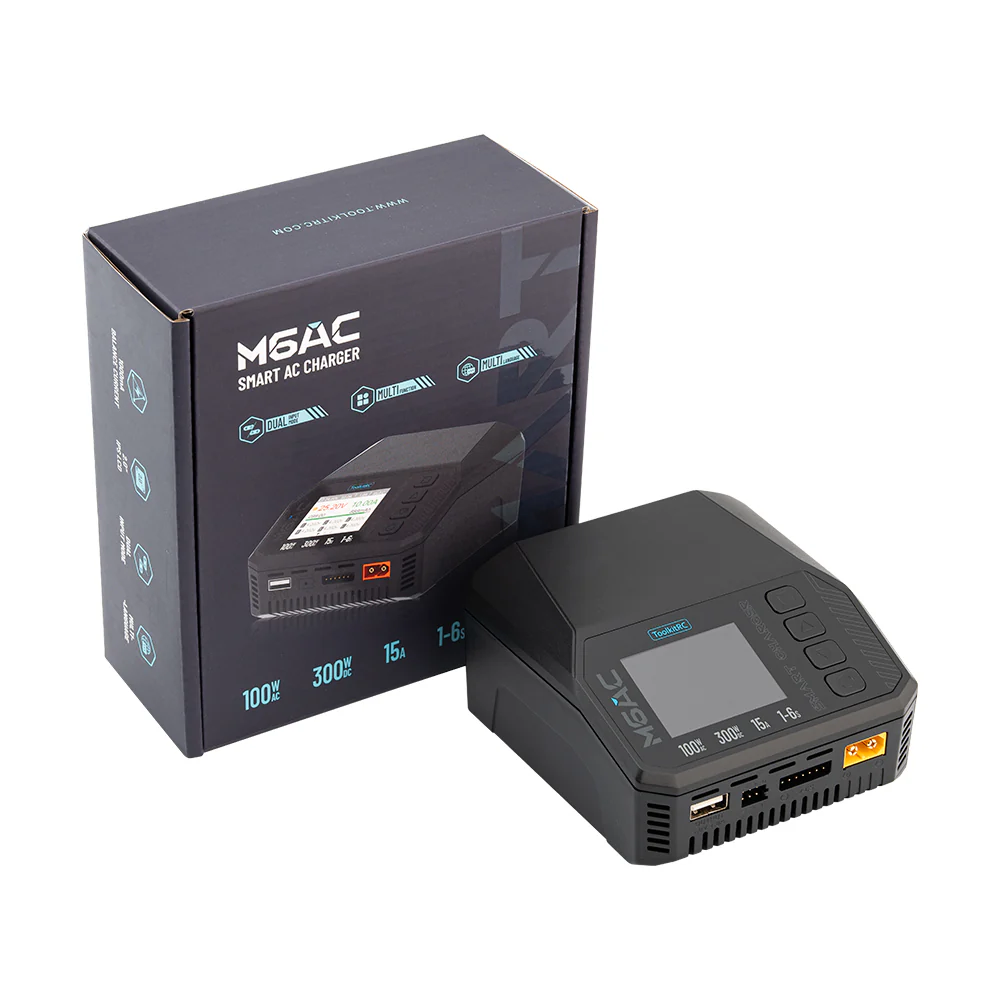

ToolkitRC M6AC 1-6S AC 100W DC 300W 15A Battery Charger - XT60

The ToolkitRC M6AC is equipped with a dual input system and can charge batteries from 1 to 6S with 100W AC input and 300W DC input. It also has a high balance accuracy of  0.005V and a robust balance current of 1000mA. In addition to charging, it offers numerous auxiliary functions and a smart 2.0" IPS LCD display. With comprehensive security protection, this charger improves the performance of classic batteries.

Checkout all our Chargers and our ToolkitRC Collection.

GENERAL
Product size    108×106×60mm
Product weight    350g
Packing size    144×158×63mm
Packaging weight    510g
LCD    IPS 2.0″ LCD 320×240 px

CHARGER
Input voltage    AC 100-240V@MAX 120W
DC 7-35V@MAX 30A
Battery type    LiPo LiHV LiFe Lilon LTO @1-6S
NiMH @1-16S   Pb@1-10S
Balance current    [email protected]
Balance accuracy    <0.005V
Charging power    0.1-15A@300W
Discharging power    0.1-15A@300W Recycle Mode
0.1-3A@15W Internal Mode
USBA    5.0V/1.0A @10W or upgrade
Voltage    1.0V-5.0V @1-6S
Internal resistance    0.1mΩ-99mΩ @1-6S

MEASURER
PWM    880us-2200us@20-400Hz
PPM    880us-2200us×8 CH@20-50Hz
SBUS    880us-2200us×16 CH@20-100Hz
OUTPUT
PWM    500us-2500us@20-1000Hz
PPM    880us-2200us×8 CH@50Hz
SBUS    880us-2200us×16 CH@74Hz
Power    0.5-15A@1-28V Mode: CC+CV

Package Includes:

• 1 x ToolkitRC M6AC 1-6S AC 100W DC 300W 15A Battery Charger - XT60
