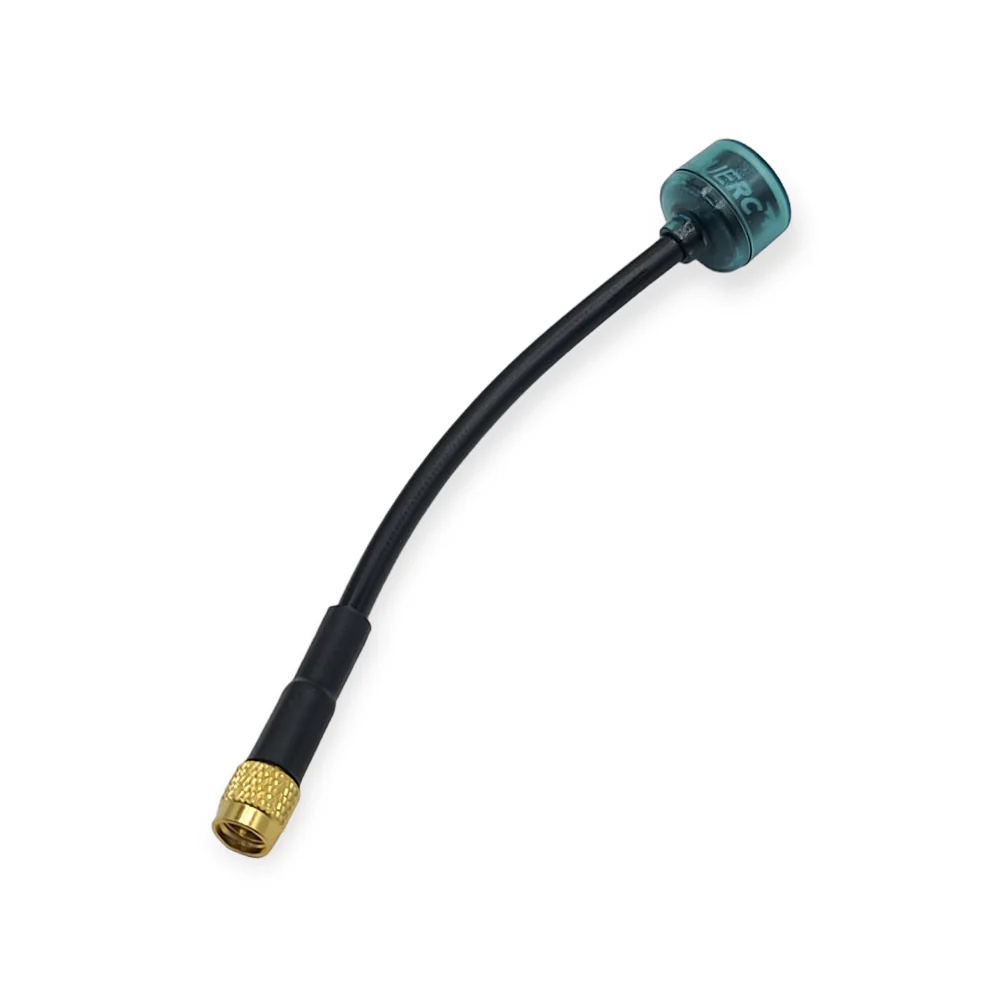

TrueRC CORE 5.8GHz SMA 125mm FPV Antenna - RHCP

The CORE 5.8 is a distillation of all those years working with drones enthusiasts and professionals alike. This  omnidirectional antenna start with a refined RF design that provide excellent consistency within units and various cables configurations. We then added a very durable outer shell that protect the antenna from the inevitable crashes.

Check out all our FPV Antennas and the rest of our TrueRC Products!

Features

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflect impacts
• Exclusive knurled True-SMA for easy tightening

SPECIFICATIONS:

• Gain: 1.9dbic
• Polarization: RHCP
• Cross-Polar Rejection: -10 to -20dB (1.9%)
• Bandwidth: 5.5Hz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Dimensions(head): 16.9mm dia. x 13.1mm height.
• Weight:  10.5grams
• Length: 125mm
• Connector: Reinforced SMA

Package Includes:

• 1 x TrueRC CORE 5.8GHz SMA 125mm FPV Antenna - RHCP
