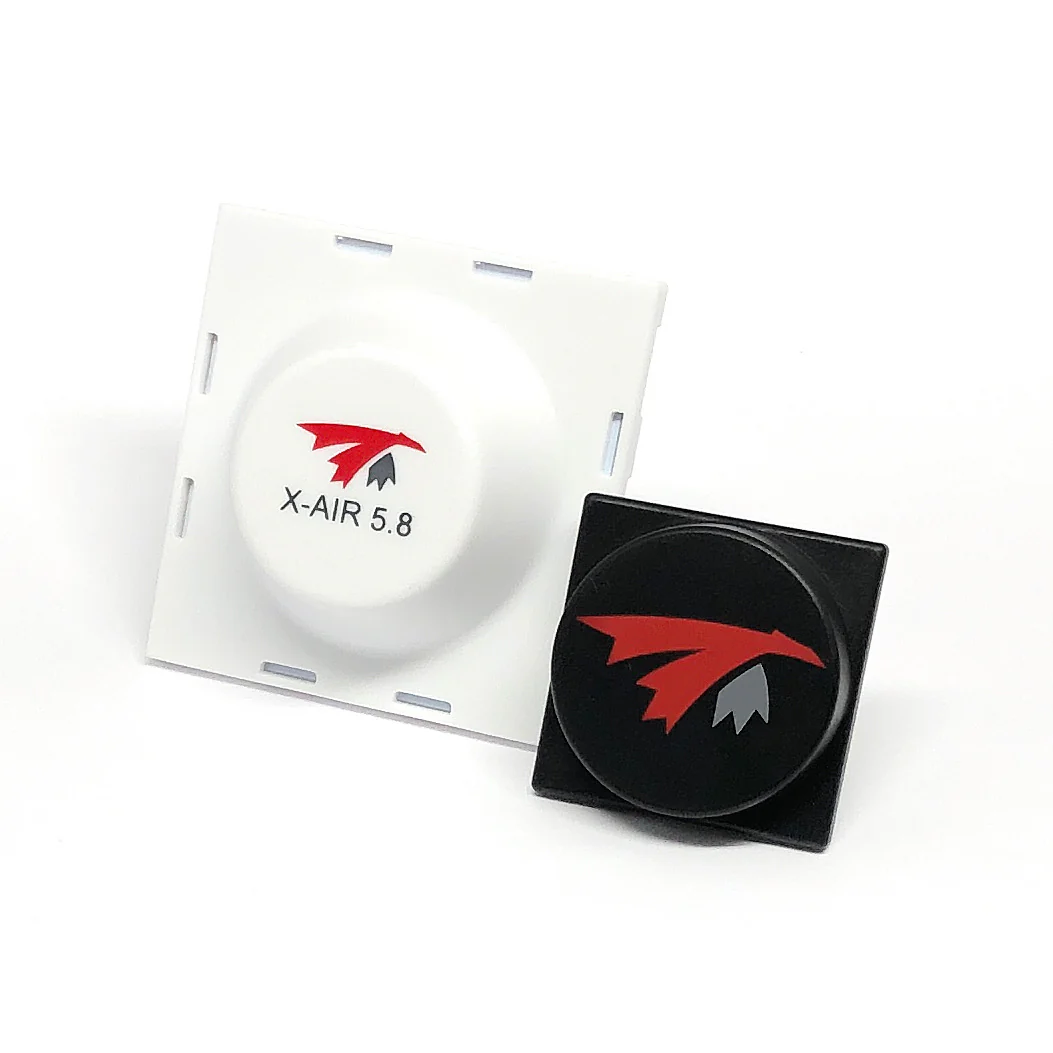

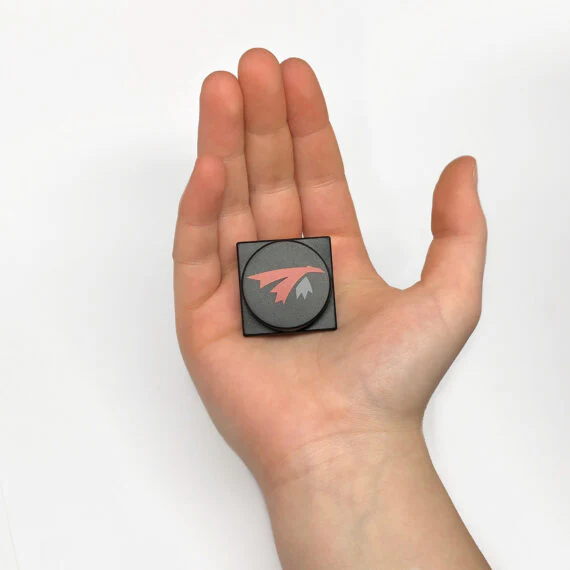

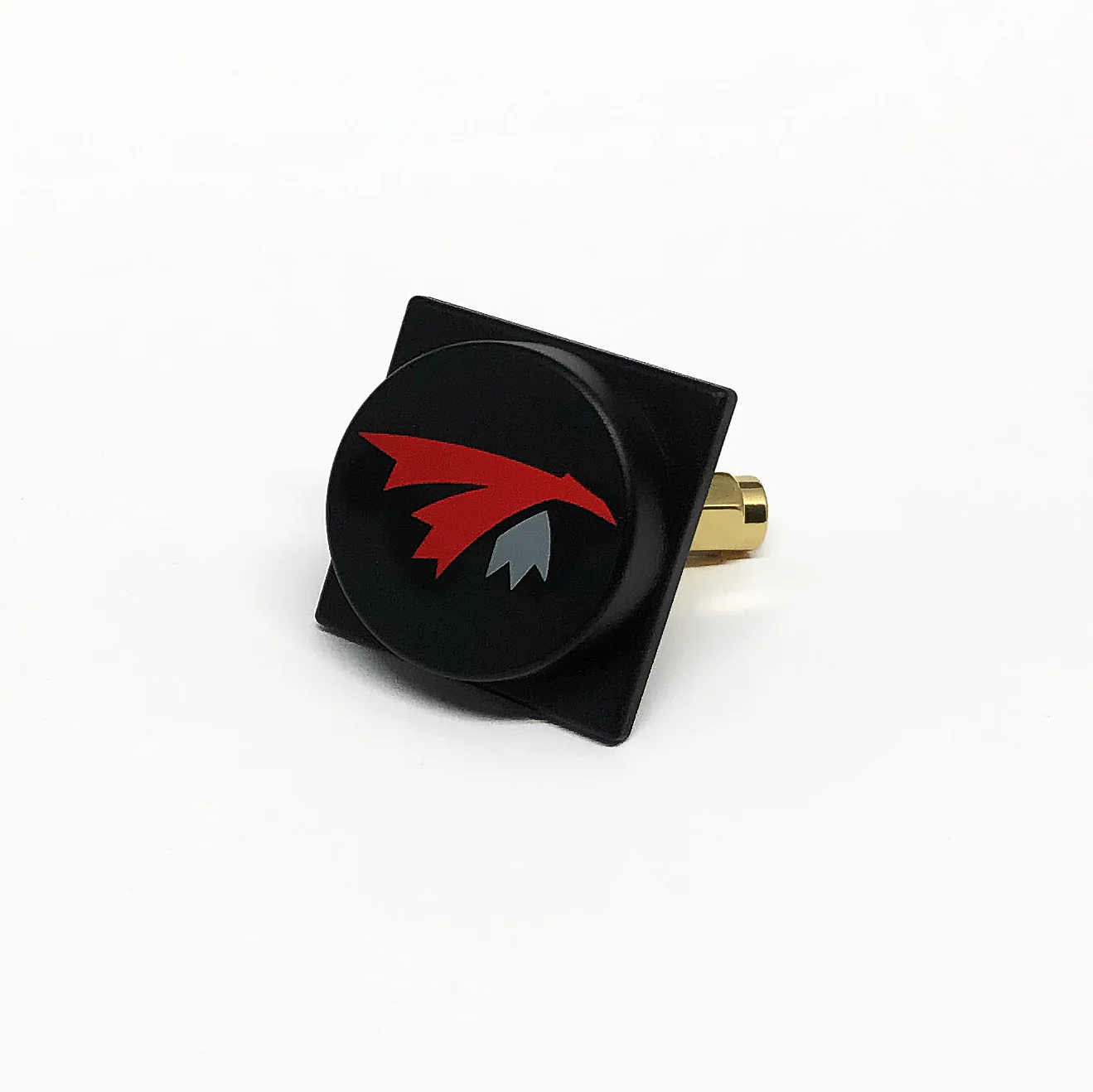

TrueRC X-AIR 5.8 MK. II - LHCP

The X-AIR 5.8 Mk. II is our latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming

 Check out all our LHCP Antennas and the rest of our TrueRC Products!

Specifications:

• Bandwidth: 5.1GHz-6.7GHz
• Gain: 9.5-10.5 dBic
• Polarization: LHCP
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg. ‘
• Connector: SMA male
• Dimension: 32 x 32 x 16mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Package Includes:

• 1 x TrueRC X-AIR 5.8 MK. II - LHCP
