TrueRC X-AIR MK II 5.8GHz Patch Antennas & Stubby Combo for HDzero/SharkByte - RHCP

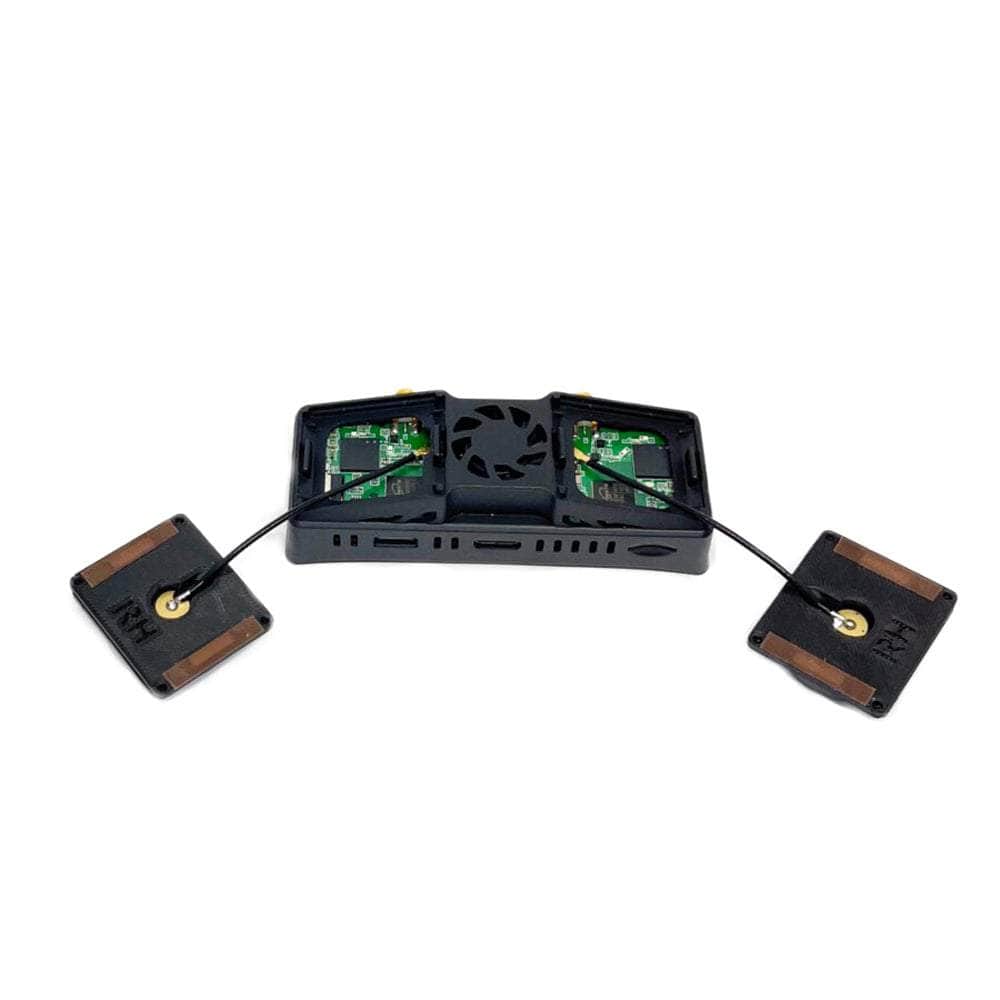

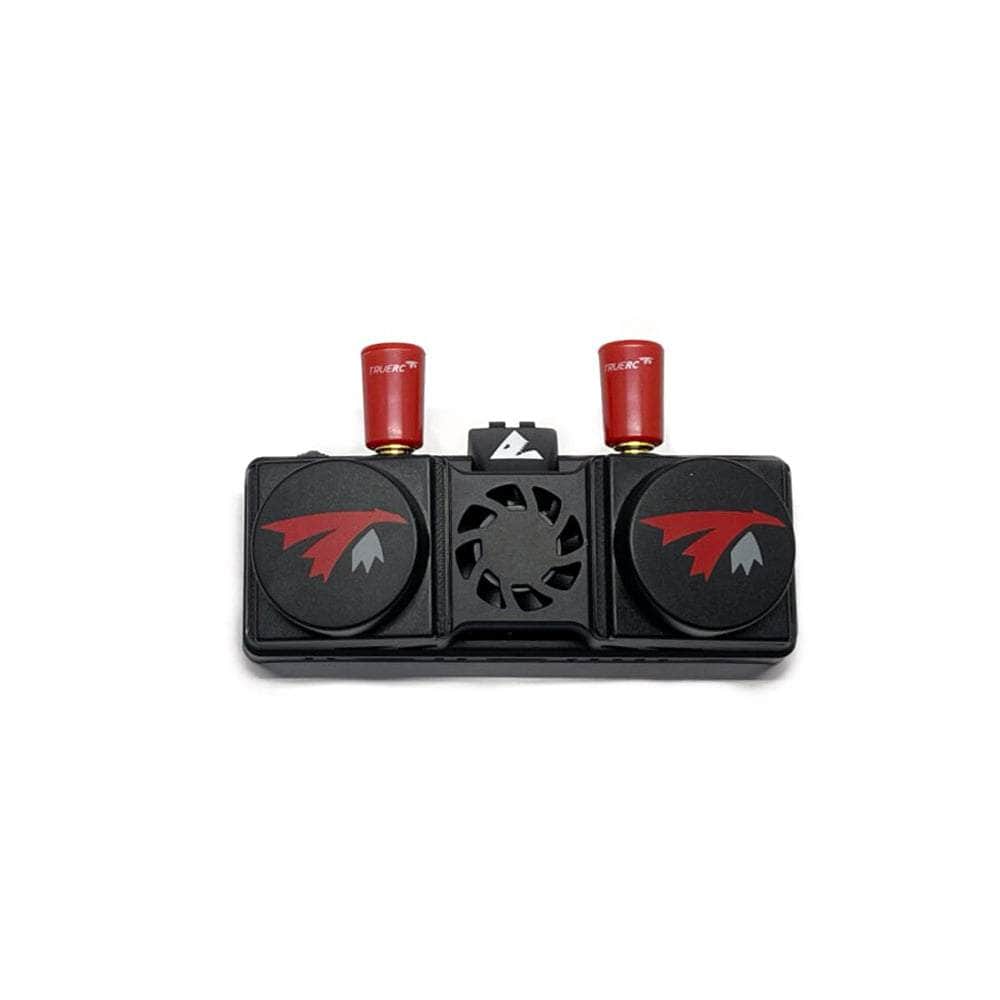

Swap the included patch antennas from the Shark Byte digital HD FPV system with high quality X-air circular polarized directional antennas! This is the adaptation of the renowned X-AIR into a slick low profile mount for the Shark Byte RX5. Simply pop out the white panels and stick them on for an easy upgrade and a killer look. Improved beam width of 120deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubbies and performance has never been so convenient!
** not directly compatible with newest 2022 HDZero VRX **

 Check out all our RHCP Antennas and the rest of our TrueRC Products!

Features:

• Direct replacement for stock patch antennas
• Compact low-profile design on your goggles, easy to store and transport
• High 10 dB for unsurpassed long range and signal penetration
• Large SWR and axial ratio bandwidth, works even out of the 5.8GHz band

Specifications:

TrueRC X-AIR MK II

• Bandwidth: 5.1GHz-7.0GHz
• Gain: 10 dBic
• Polarization: RHCP
• Beam-width: 120deg
• Beam-width @-3dB: 68deg
• Connector: U.fl
• Dimensions: 34x34x15mm
• Weight: 8.8g each

TrueRC Singularity Stubby

• Gain: 1.9dbic
• Polarization: RHCP
• Cross-Polar Rejection: -15 to -30dB (1.9%)
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• SWR: <=1.5:1
• Connector: SMA
• Dimensions: 12.7x20mm
• Weight: 3.7g each

Includes

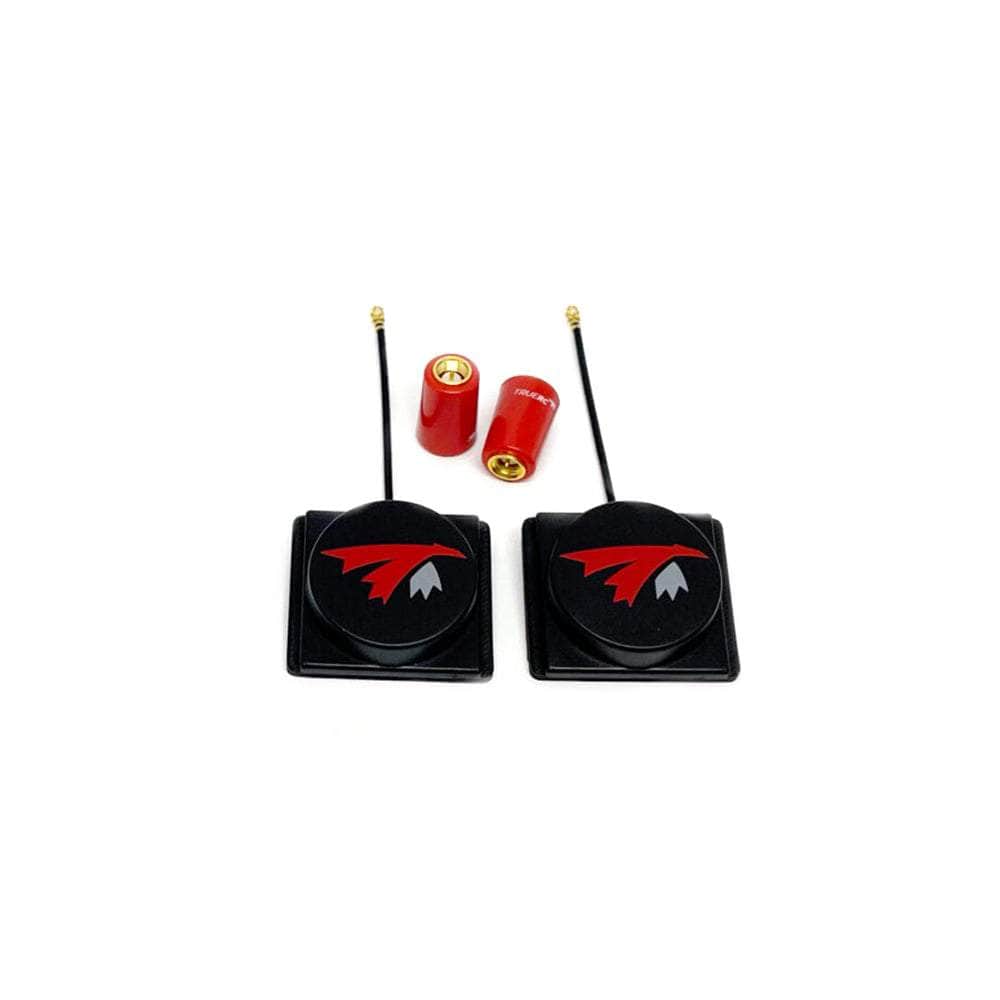

• 1 x TrueRC X-AIR 5.8GHz MK II Patch & Stubby Antenna Combo for HDzero/SharkByte
