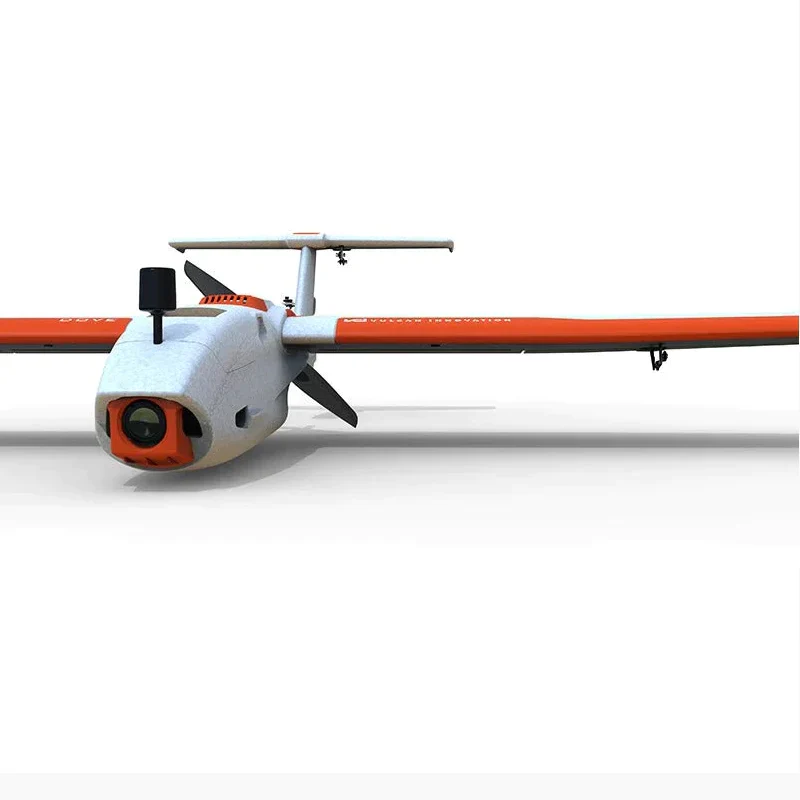

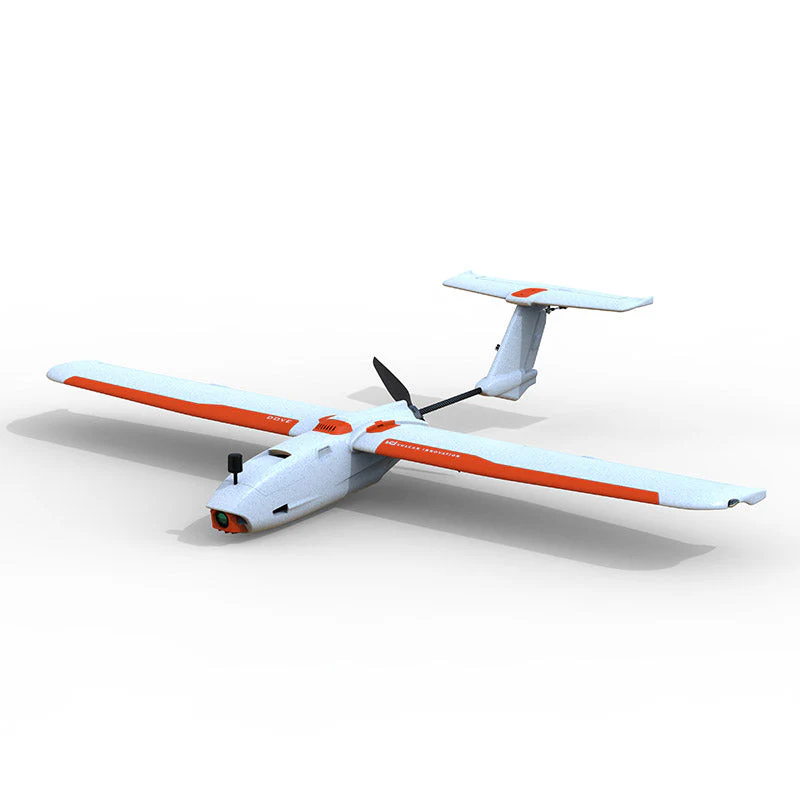

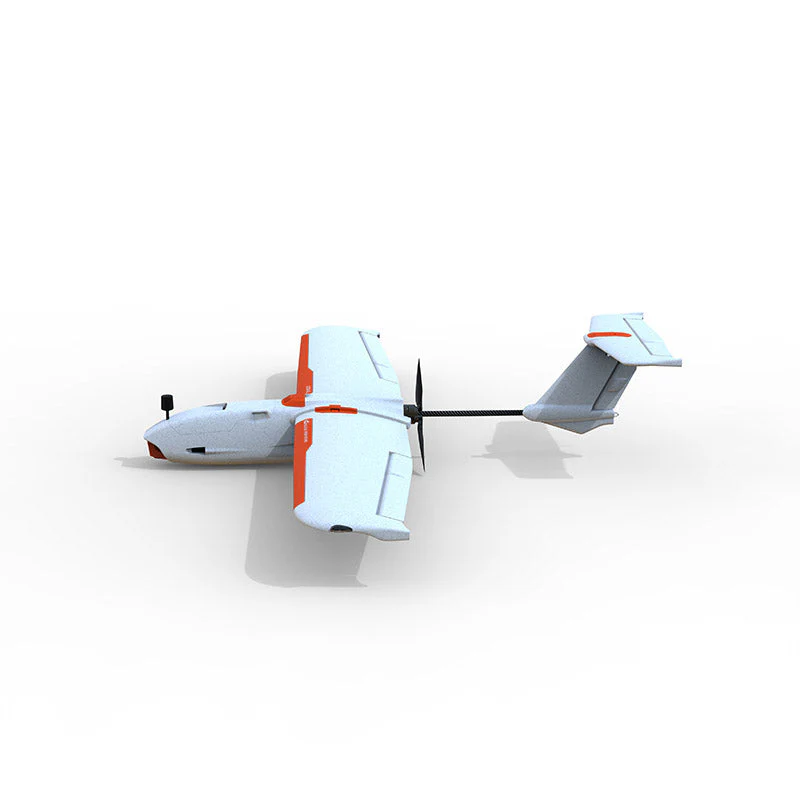

VCI DOVE FPV Fixed Wing Plane Kit - PNP

Elevate your FPV flight experience with Vulcan Innovation's advanced fixed-wing aircraft, engineered with a sleek, drag-minimized fuselage and sturdy carbon fiber build for enhanced strength and battery longevity. This model seamlessly accommodates cutting-edge DJI O3, HDZero/Walksnail, and analog video systems, bolstered by custom motors and propellers designed for peak aerodynamic performance. Quick assembly, eco-friendly materials, and night-flight illumination round out an aircraft that truly soars above the rest.

Here you can find the upgraded Servo with Metal Gears for the Dove.

Don't forget to check out the rest of our Fixed Wing Planes.



Features

• Streamlined fuselage designed to minimize drag and extend battery life

• Supports DJI O3, Vista/Link, HDZero / Walksnail and Analog video transmission systems with a dedicated mount for action cameras also.

• Main structure of the fuselage constructed from carbon fiber, offering double the strength, durability, and stability of traditional wooden materials

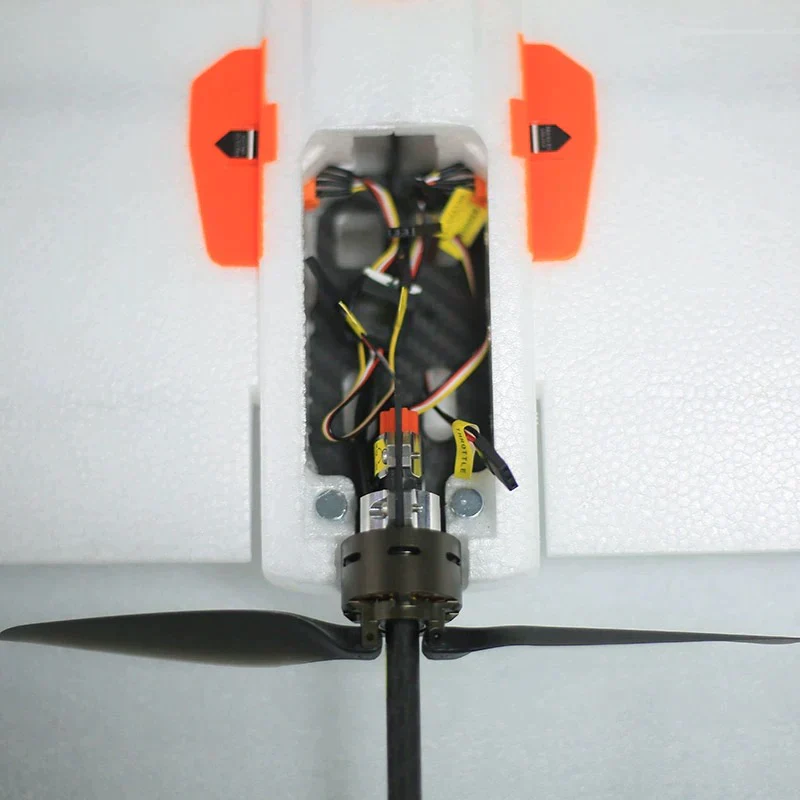

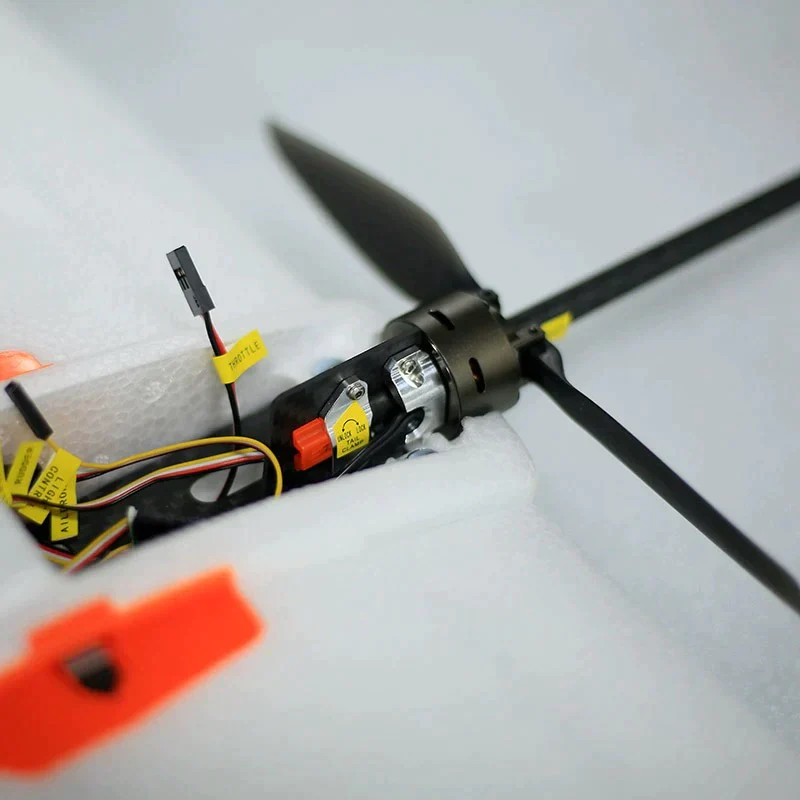

• Custom motor design aligns thrust directly with the fuselage centerline, eliminating propeller angle deviation and optimizing thrust output

• Custom-designed folding propellers pair seamlessly with the motors, significantly reducing flight drag and maximizing aerodynamic efficiency

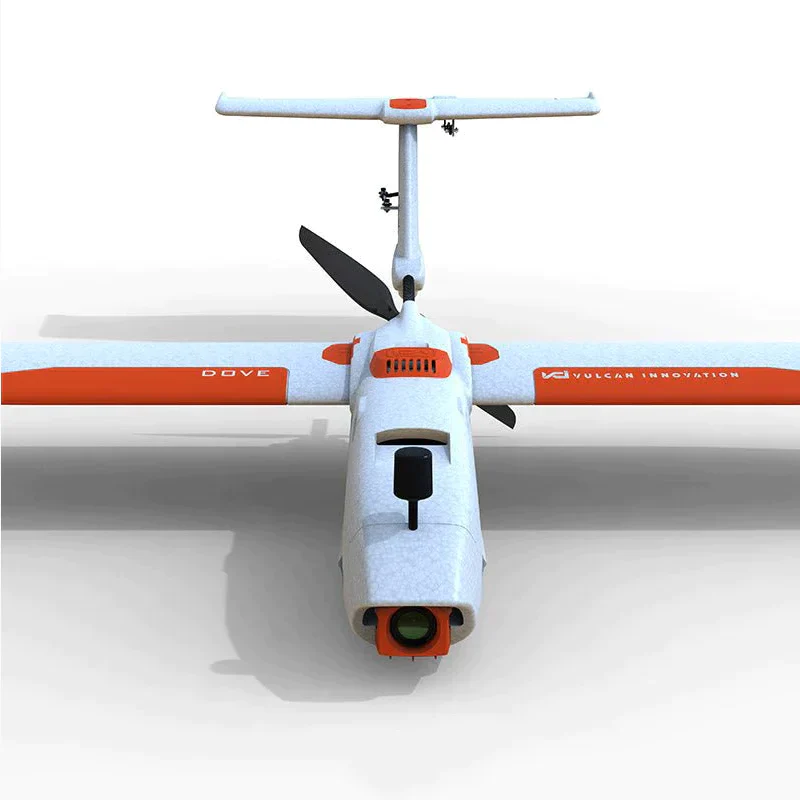

• Elevated T-shaped tail designed to reduce turbulence from the propellers, ensuring the efficiency of the tail assembly through specialized design

• Integrated load-bearing wing allows the attachment of up to 600g of additional weight without modifying the power system, maintaining free flight capabilities

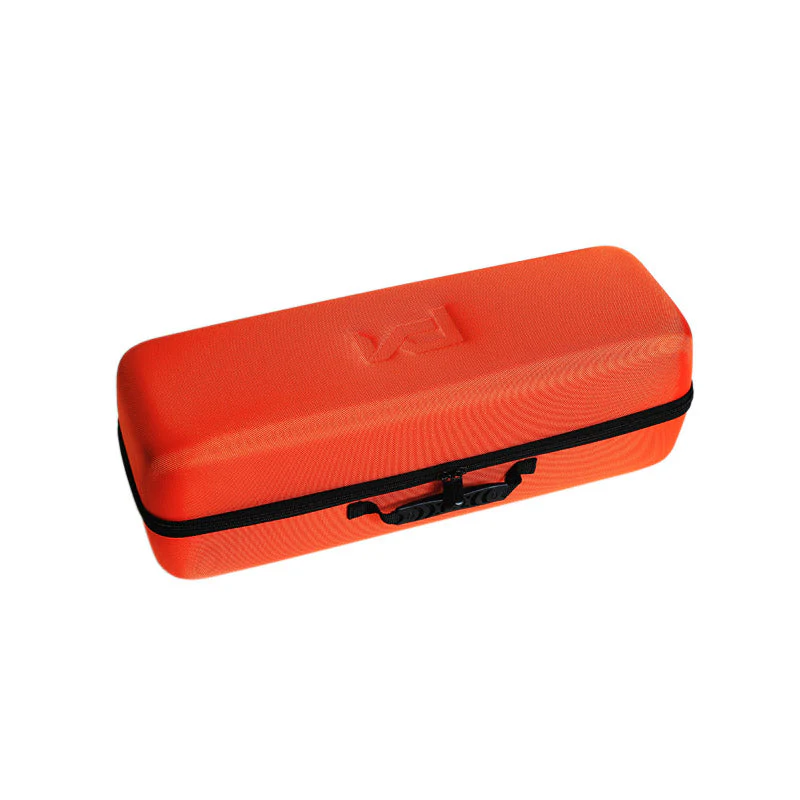

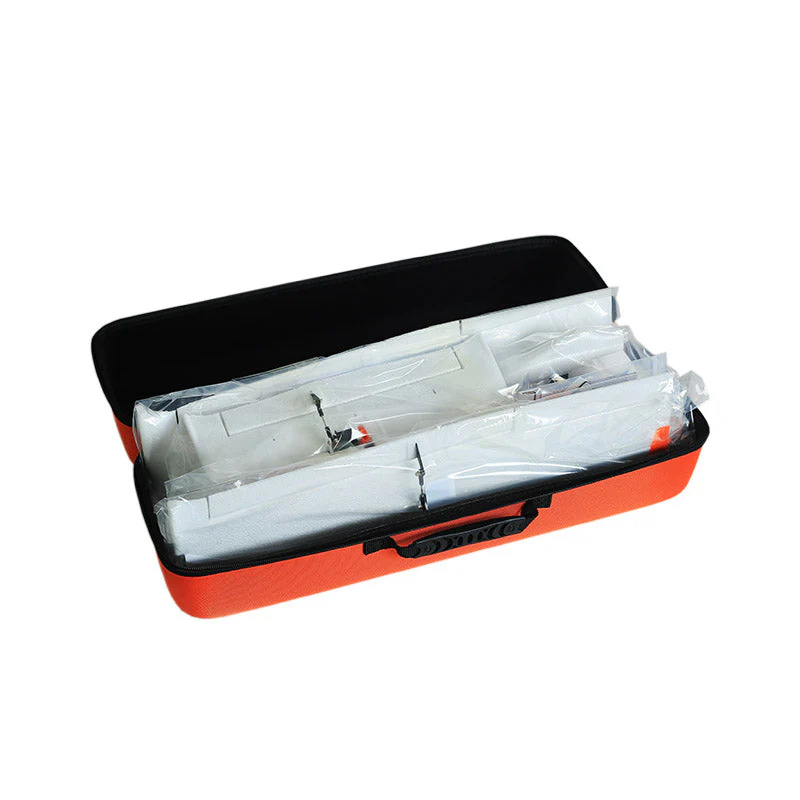

• Quick-release assembly and compact storage size, complete with a durable hard-shell case for convenient transportation and additional fuselage protection

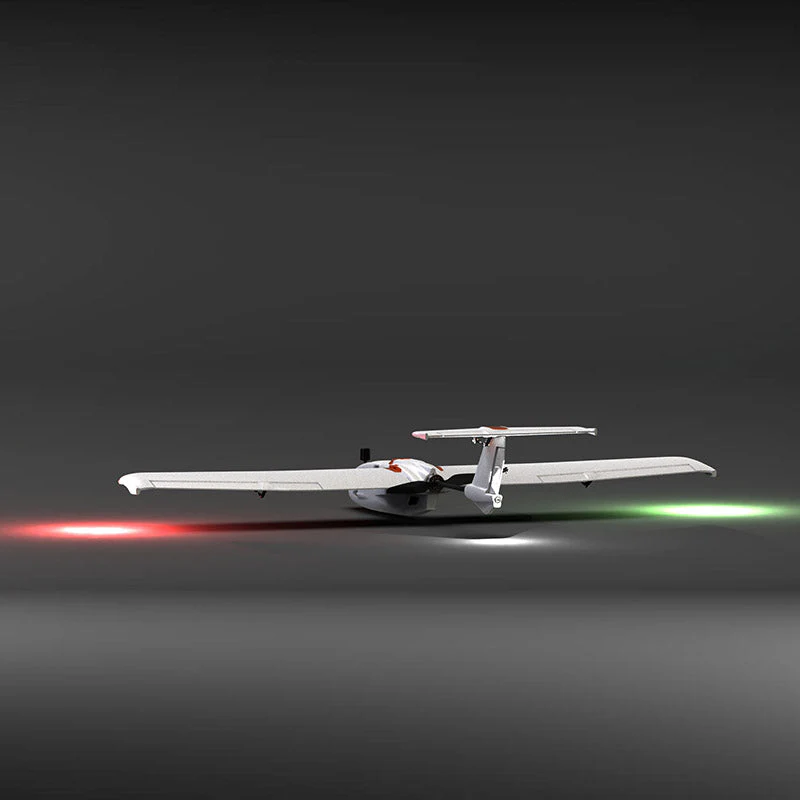

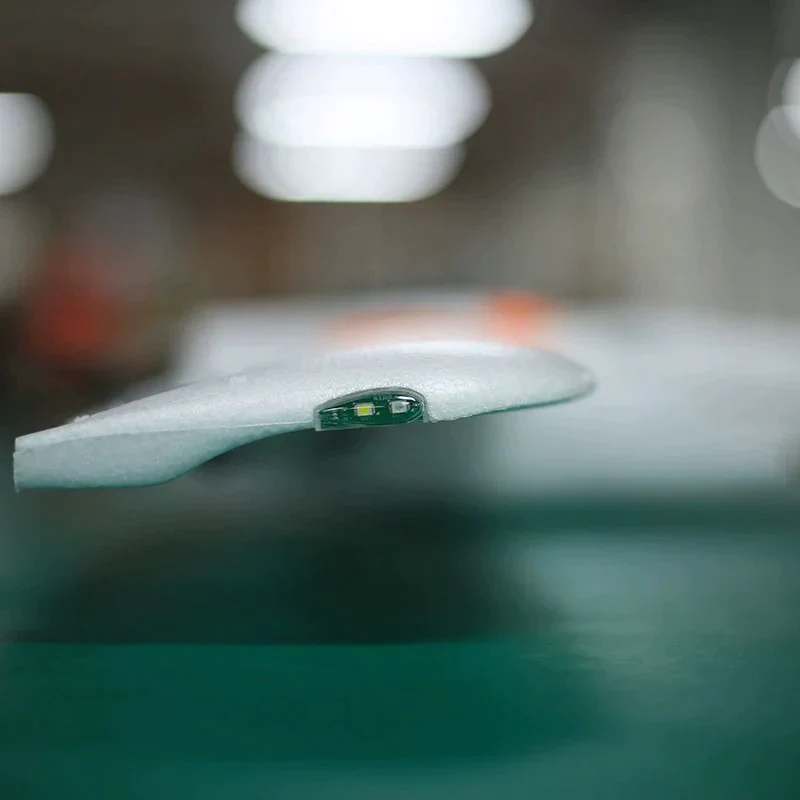

• Equipped with dual-color lights for a visually appealing night flight experience and improved landing visibility

• Constructed with EPP materials that naturally decompose, avoiding environmental white pollution

Specifications

• Wing Span: 41.4 inch (1050mm)
• Length: 29.3 inch (745mm)
• Height: 7.3 inch (185mm)
• Wing Area: 217 inch (14d㎡)
• Normal Takeoff Weight: 1.44 lb (650g)
• Maximum Takeoff Weight: 2.75 lb (1250g)
• Maximum Airspeed: 68.35 mph (59 knots or 110 km/h)
• Stall Speed: 15.53 mph (13.5 knots or 25 km/h)

Test Data on 3S 1800mAh Li-Po Battery

• Maximum Cruise Time: ≥35mins
• Maximum Range: ≥25kms
• Maximum Load: 1.32 lb (600g)

Configuration Details:

Included Parts:

• Servo: 4.3g Digital
• ESC: Hobbywing Skywalker 20A 2-3S
• Motor: VCI SPARK 2306-1650KV
• Propeller: VCI Folding 7530-2

NOT INCLUDED, Recommended Parts:

• Flight Controller: MATEK WING (INAV) SN-FAST
• PWM Receiver
• VTX/Camera System:

1. DJI O3 Air Unit
2. HDZero Freestyle VTX + Nano 90 Camera (May require custom mount)
3. Rush Solo Analog VTX w/ Foxeer Predator Nano Camera (May require custom mount)

• Battery:

1. 3S Li-Po 1300-2200 mAh
2. 3S 18650 cells

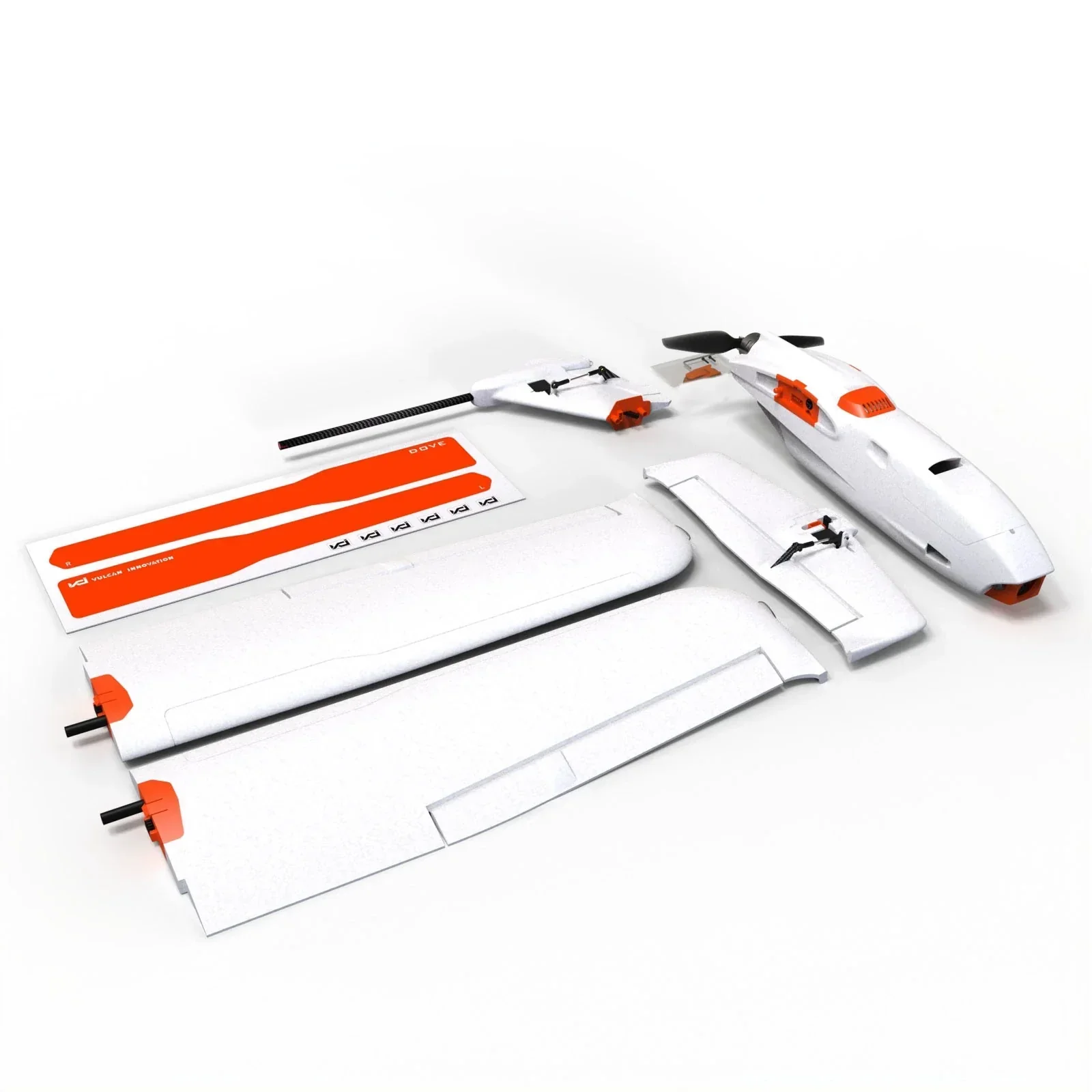

Package Includes:

• 1 x Fuselage (w/ propeller, motor, ESC)
• 1 x Horizontal Stabilizer (w/elevator servo)
• 1 x Vertical Stabilizer (w/ rudder servo)
• 1 x Left Wing+Right Wing (w/ left aileron servo)
• 1 x Accessory Pack (screws, allen wrench, spare battery strap, 3M double sided tape)
• 1 x Sticker
