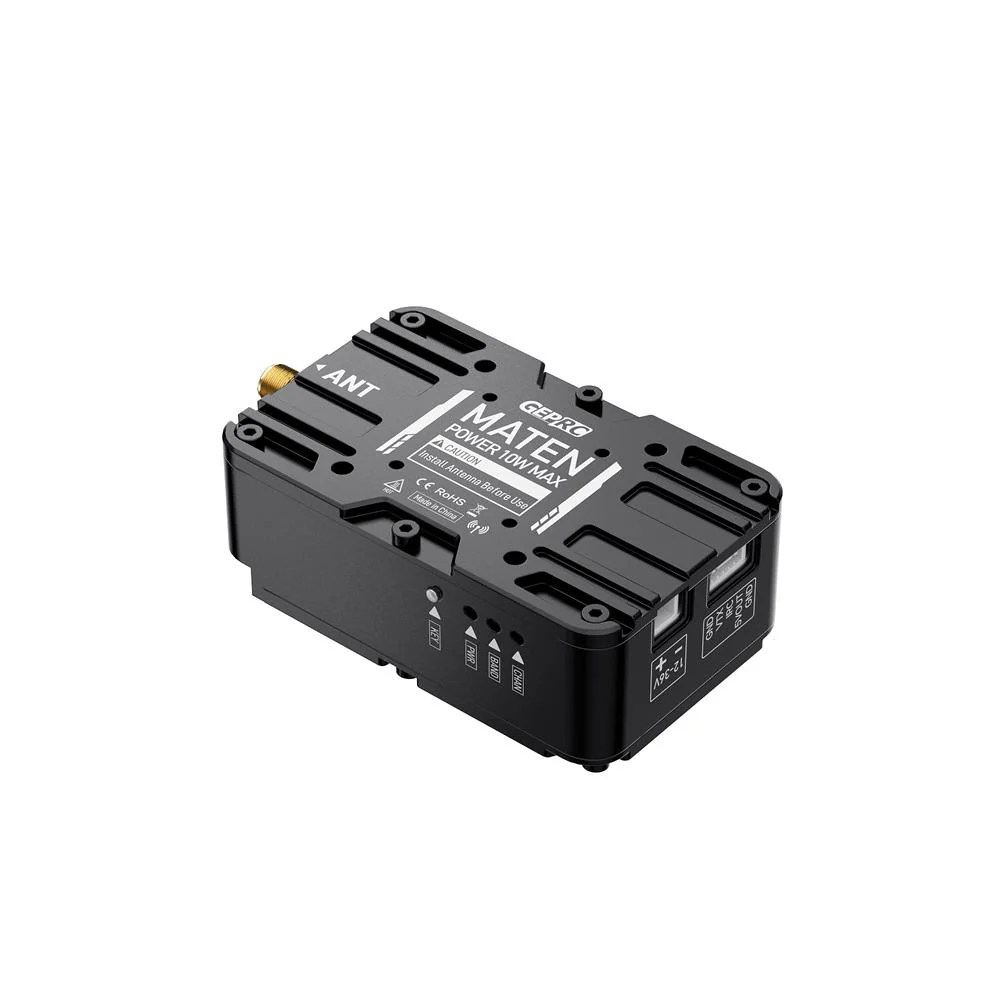

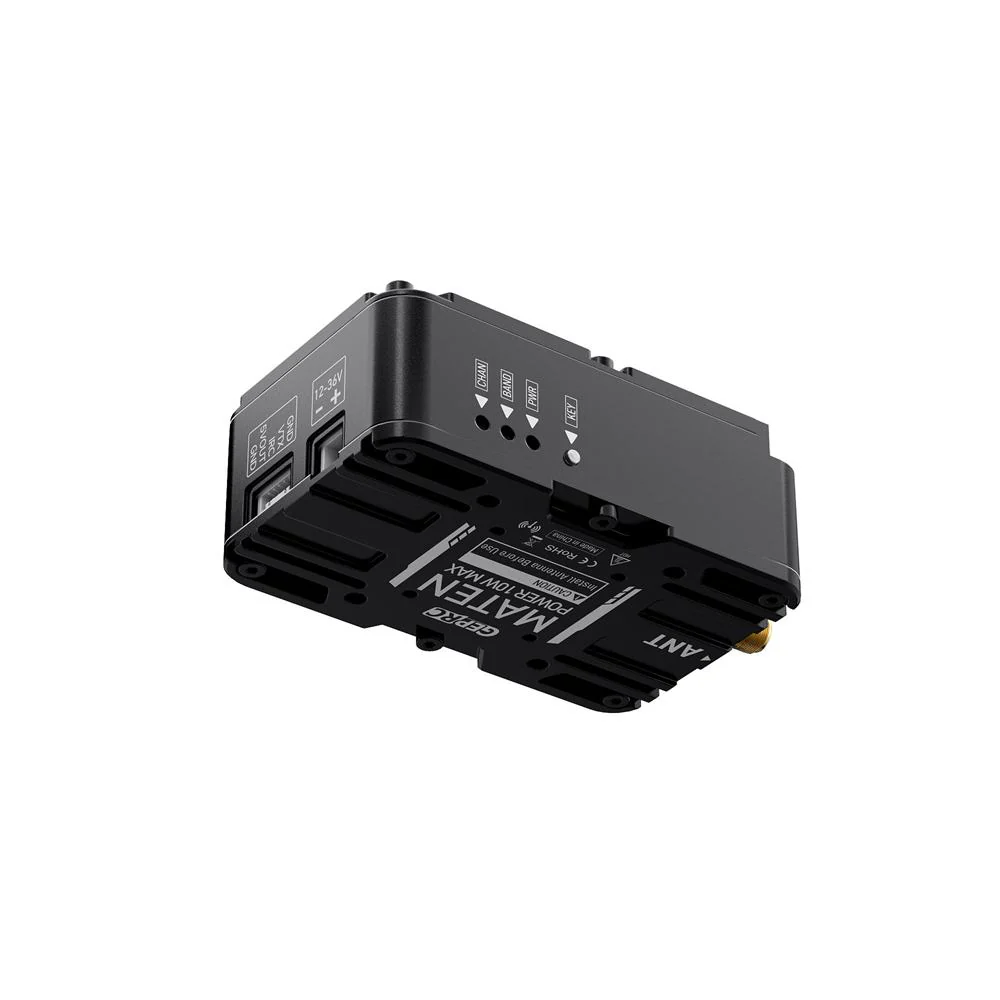

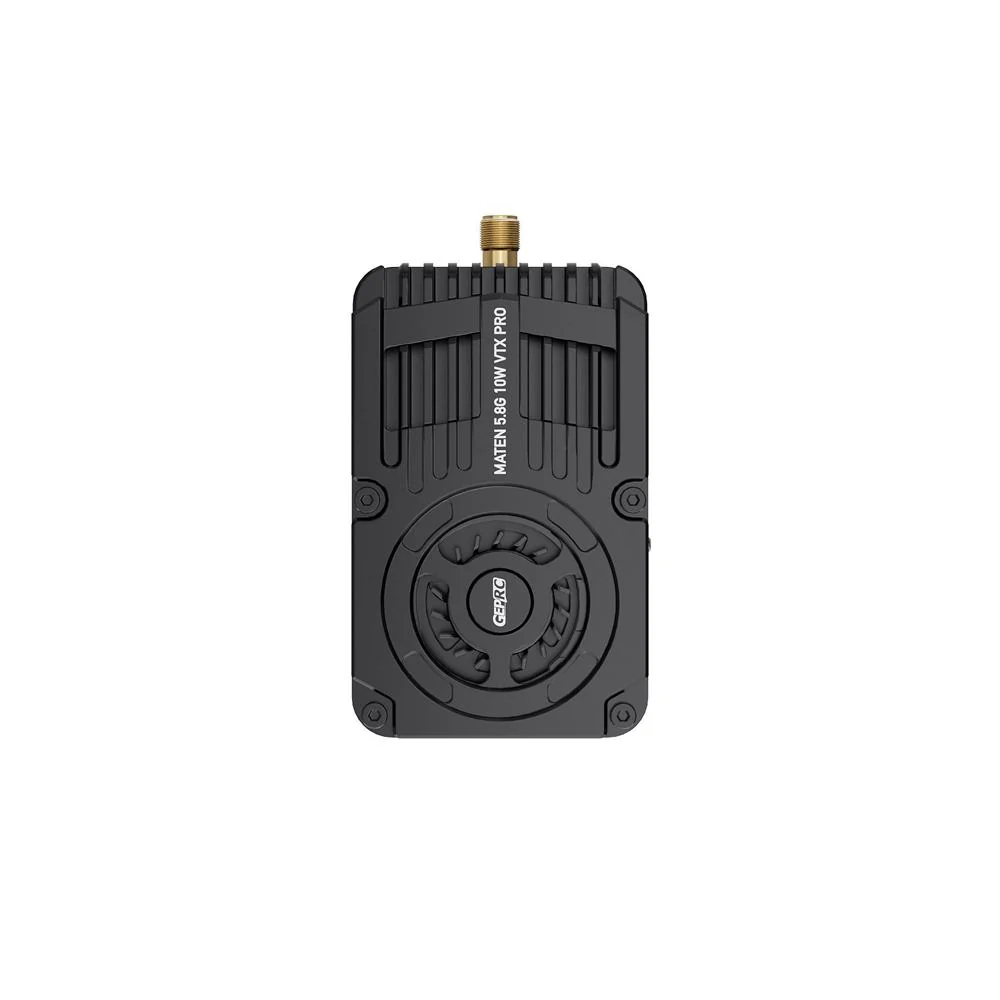

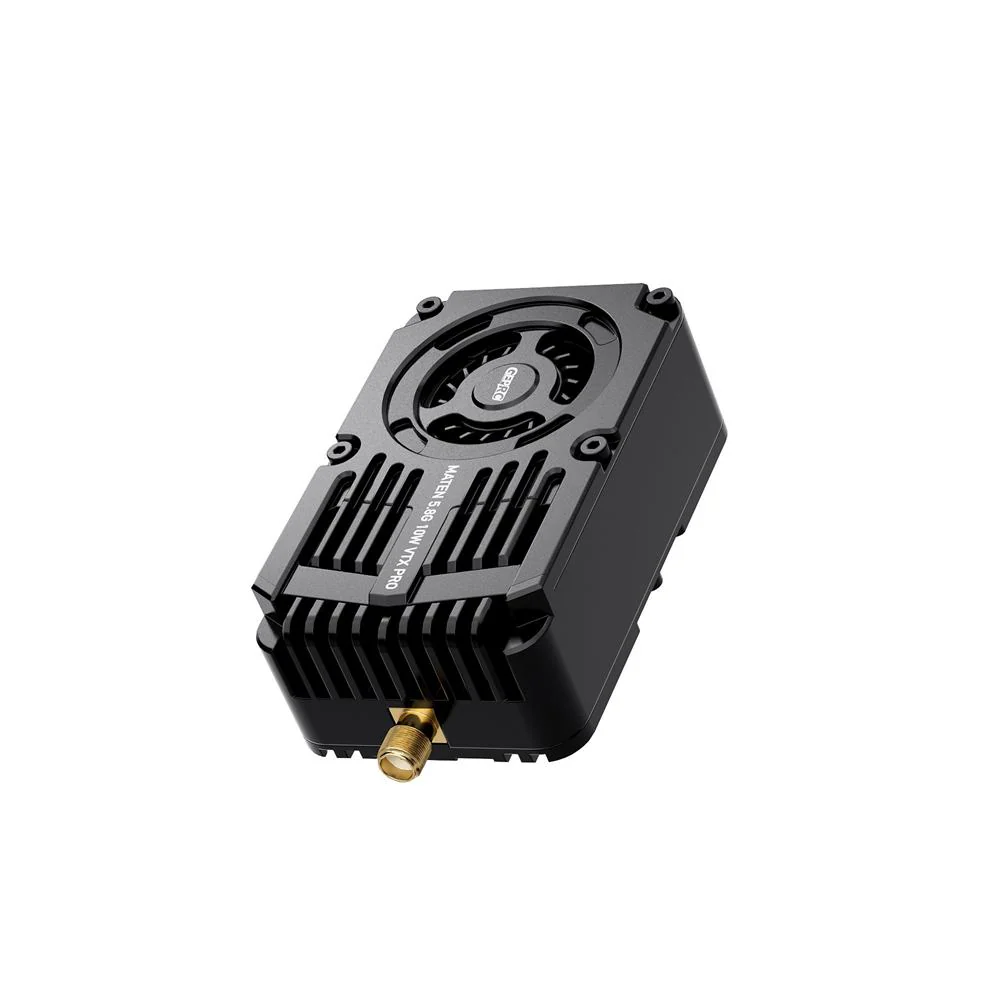

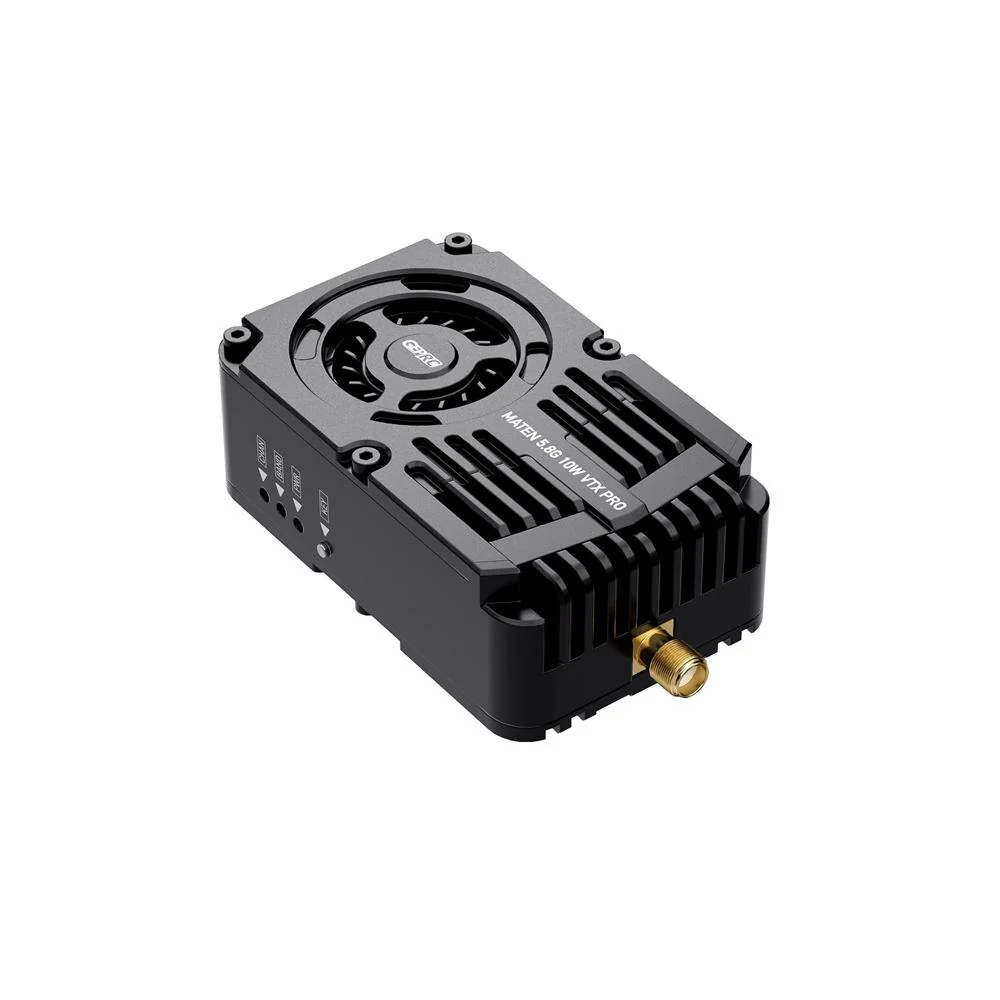

GEPRC MATEN 5.8G 10W VTX PRO Analog Video Transmitter
The MATEN 5.8G 10W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 10W of power. The full frequency range is 4884-6184MHz (Must be operated within the legal range of 5650 - 5925 MHz and with a HAM amateur radio license) , and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.
Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 10W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.
It operates within a voltage range of 12-36V and includes temperature protection to prevent overheating and damage. With a total of 104 transmission channels (Must be used within the Legal channels range ~40 channels and with a HAM amateur radio license) and two mounting options, 20x20mm (M2) and 30.5×30.5mm (M3), it’s the perfect VTX for any build.
Disclaimer:
Ensure compliance with local regulatory requirements before using this video transmitter, as certain specifications may not meet standards in all jurisdictions. US operators must possess a valid HAM amateur radio license to legally operate this equipment.
Warning:
- Install Antenna before use.
- To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
Check out our Analog Video Transmitters Collection as well as the rest of our GEPRC Collection!
Features:
- Four adjustable power levels, up to 10W, ideal for long-range flights.
- The high-strength CNC aluminum alloy shell aids in heat dissipation.
- The built-in micro turbofan actively dissipates heat.
- Wide voltage input range, supporting 12V-36V.
- One function adjustment button and three indicator lights for easy operation.
- Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
- Temperature protection function prevents overheating.
- Supports enter frequency directly in the configurator.
- Compatible with 20x20mm (M2) and 30.5×30.5mm(M3) mounting hole sizes.
Specifications:
- Model: GEPRC MATEN 5.8G 10W VTX PRO
- Dimension: 78.5×43.6×25.3mm
- Mounting Hole Size:20x20mm(M2),30.5×30.5mm(M3)
- Output Power: 25mW/2.5W/5W/10W/Pit mode
- Frequency: (Must be operated within the legal range of 5650 - 5925 MHz and with a HAM amateur radio license)
- Channels: (Must be used within the Legal channels range ~40 channels and with a HAM amateur radio license)
- Enter Frequency Directly: Support
- Protocol: IRC Tramp
- Input Voltage: DC12-36V（3-8S Battery）
- Peak Operating Current：3.5A
- Output Voltage: 5V@600mA
- Antenna Connector: SMA
- Cable Connector:PH2.0 2pin,GH1.25 5pin
- Weight: 110g（VTX only）
Package Includes:
- 1 x MATEN 5.8G 10W VTX PRO
- 1 x Power cable(PH1.25 2pin 150mm)
- 1 x FC cable(GH1.25 5pin 150mm)
- 6 x M2*5 screw
- 6 x M3*5 screw
- 1 x Manual
