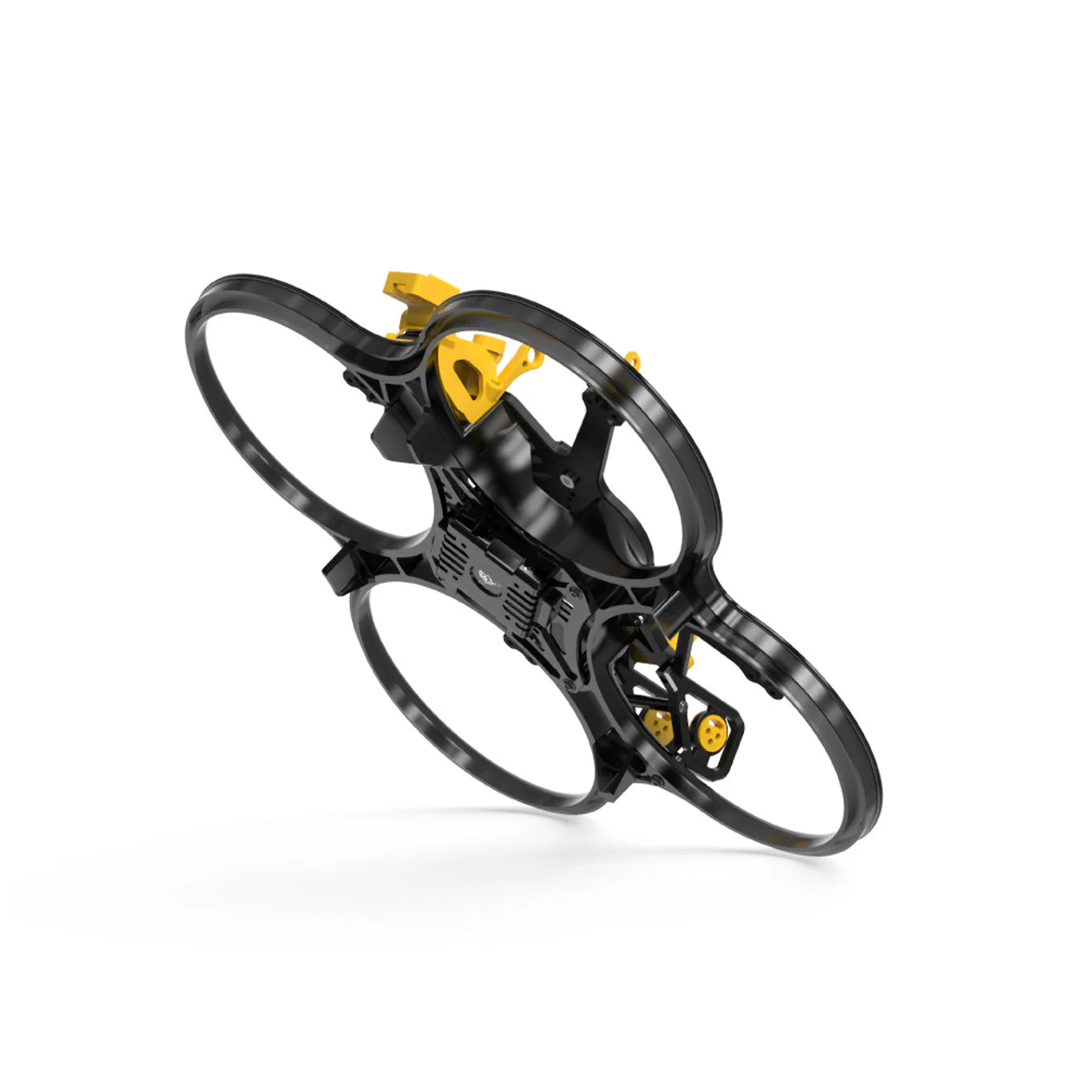

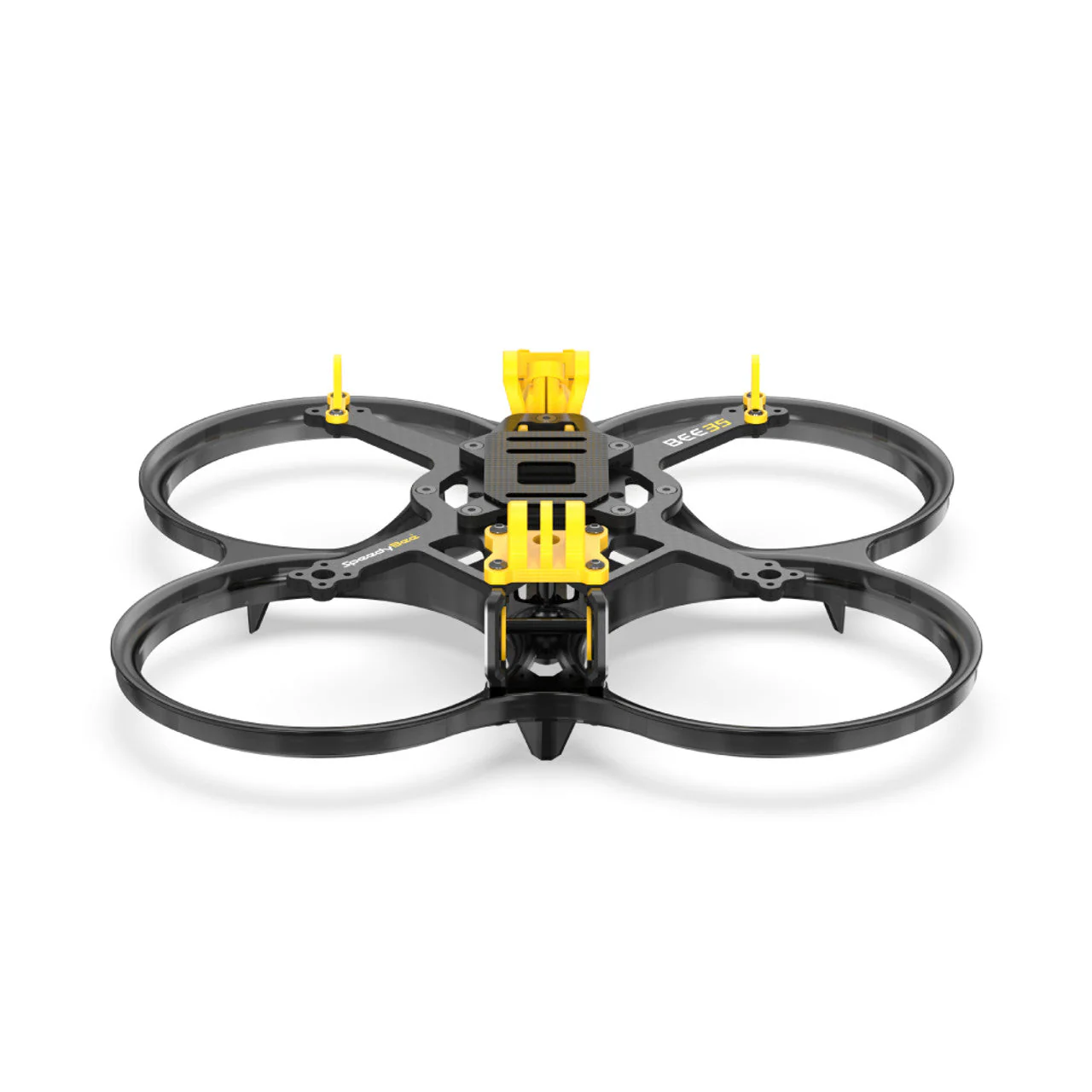

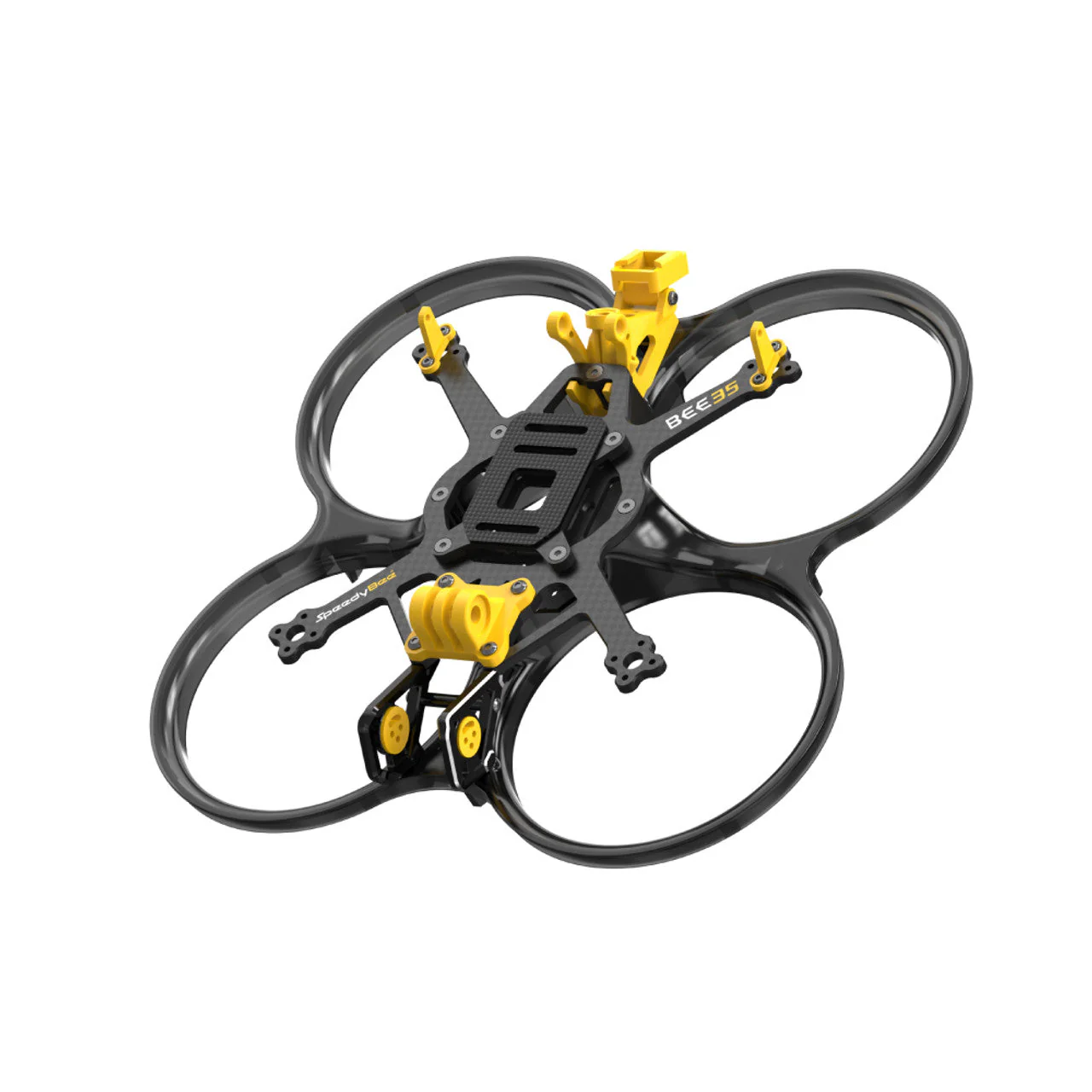

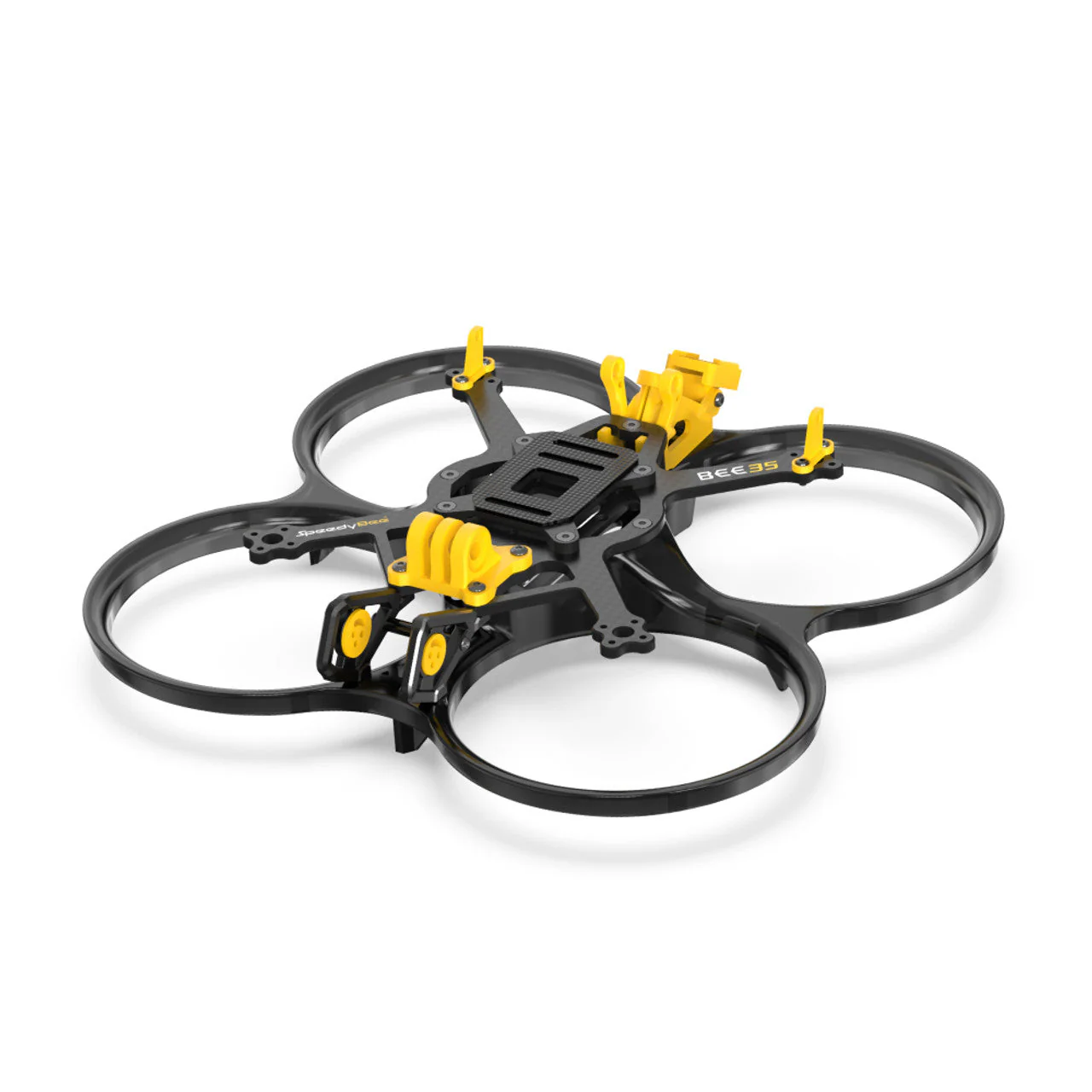

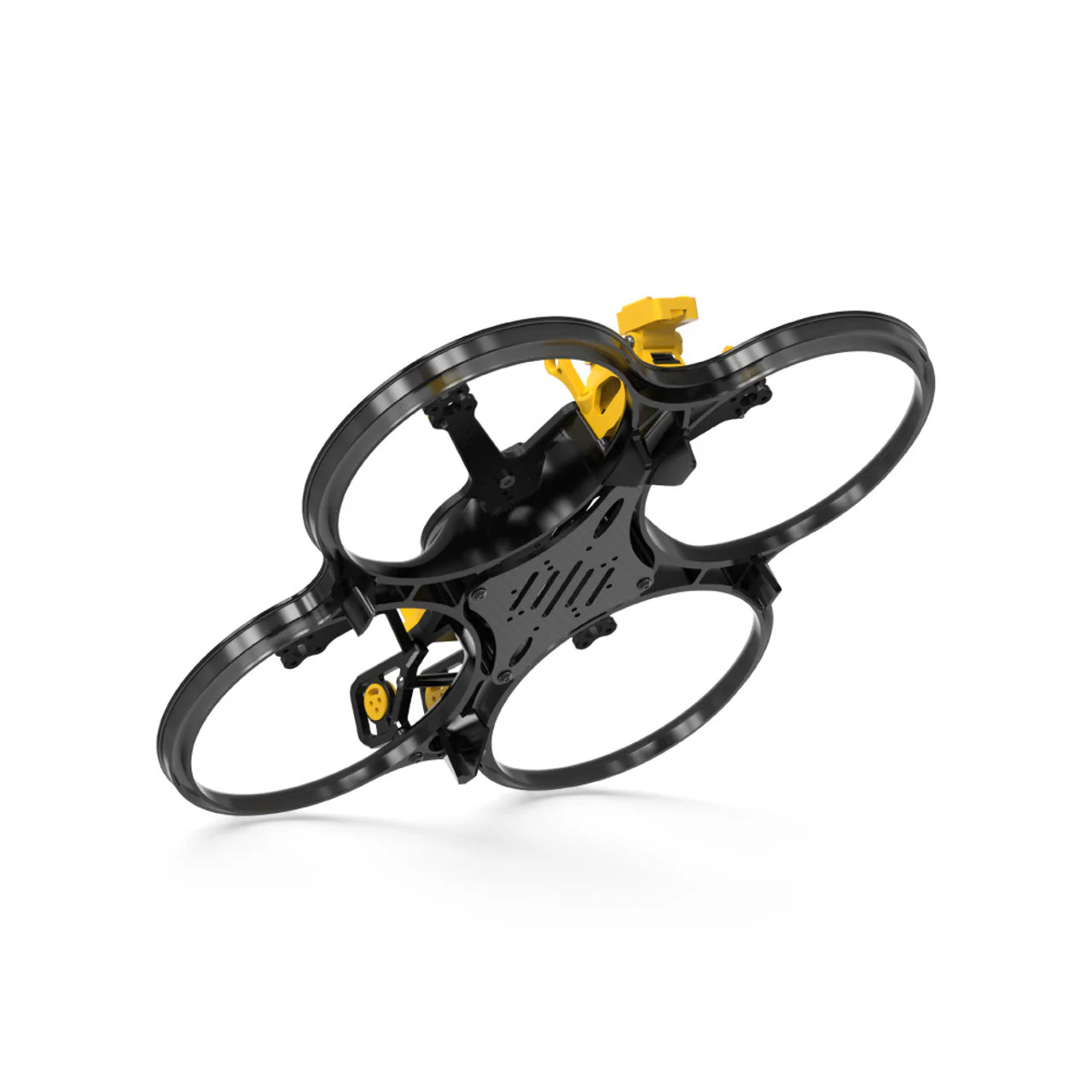

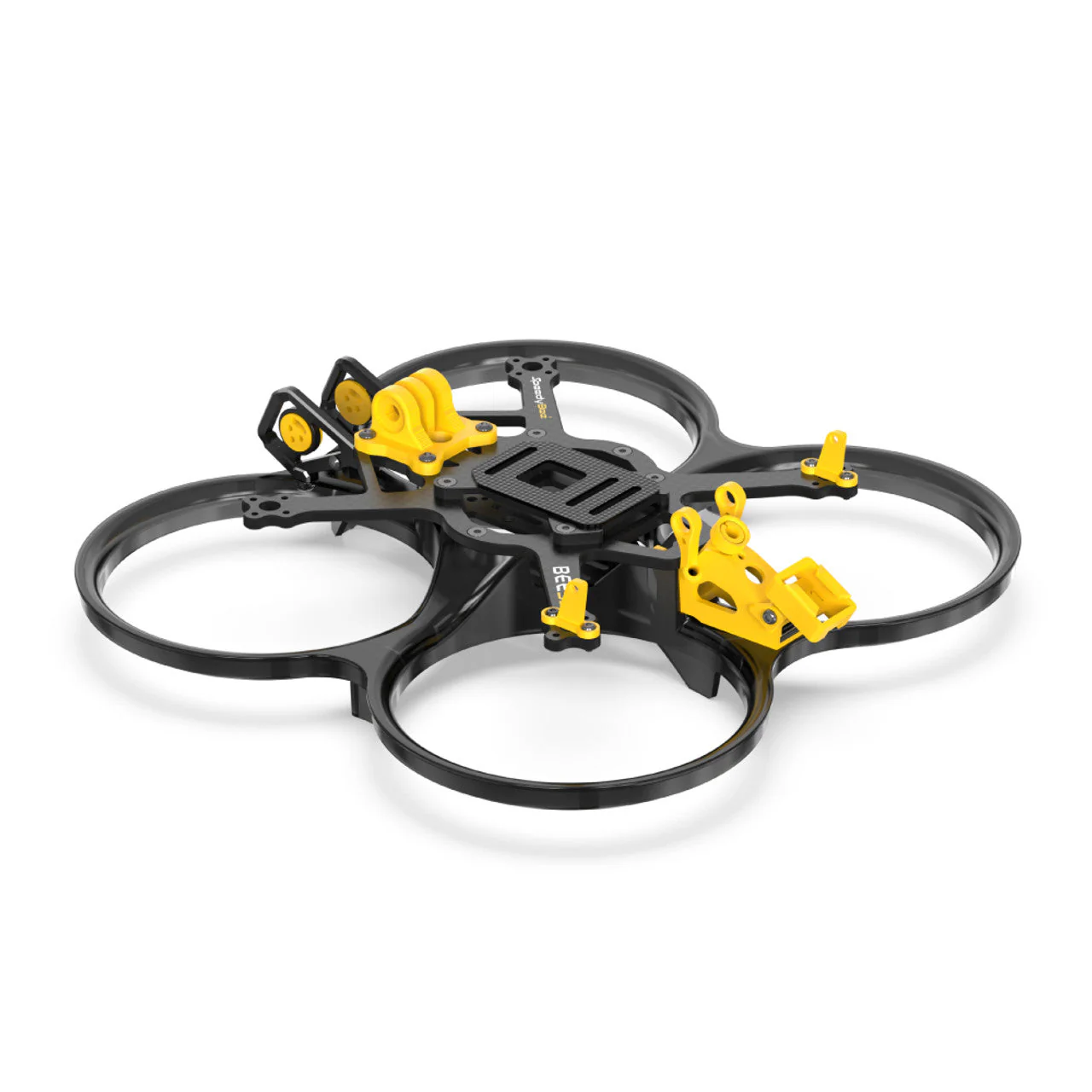

SpeedyBee Bee35 PRO 3.5" FPV Drone Frame Kit
Introducing the SpeedyBee Bee35 PRO: the frame that combines the strength of aerospace-grade aluminum with the elegance of seamless engineering.

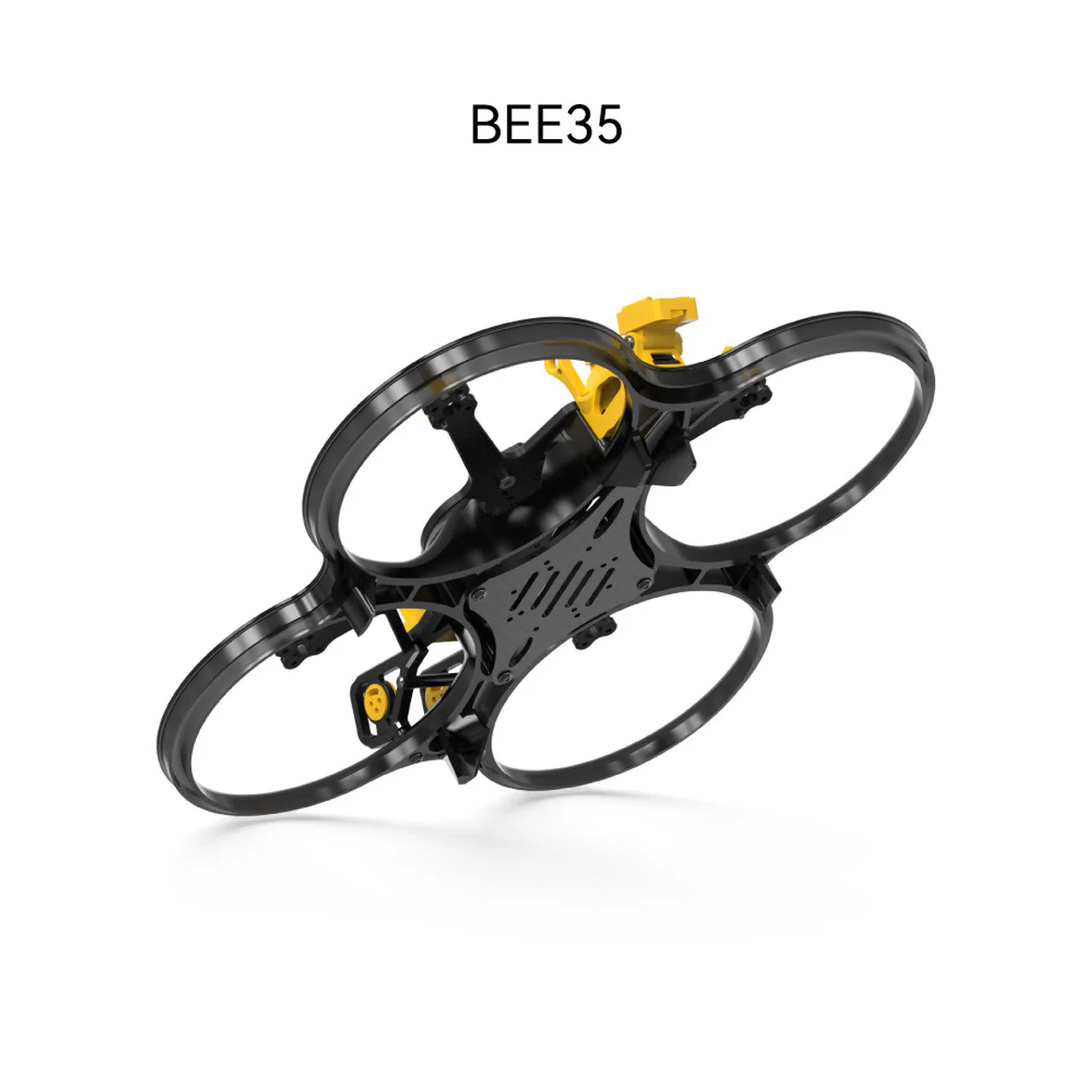

- BEE35 comes with a carbon fiber bottom plate.

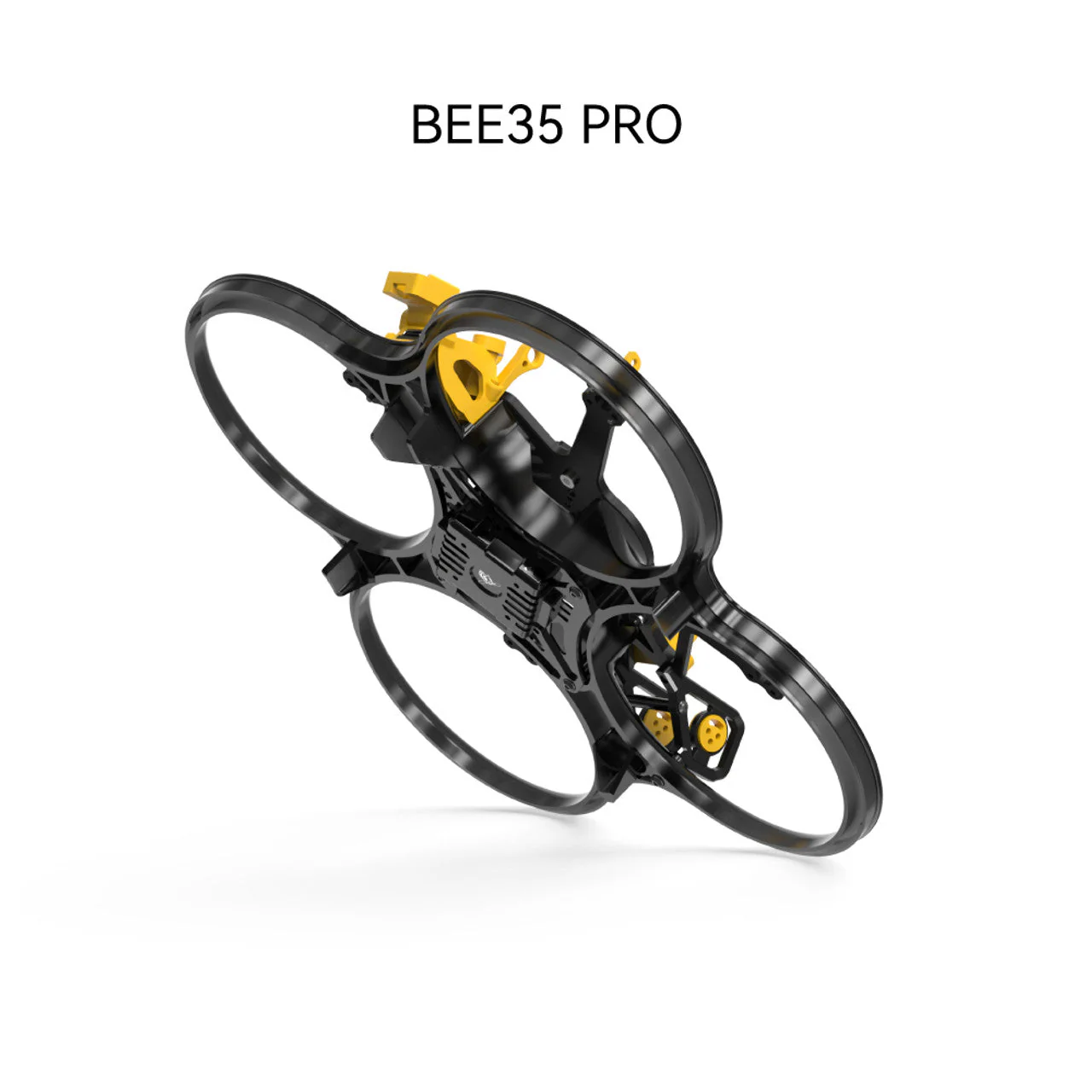

- BEE35 PRO comes with an aluminum alloy heat sink bottom plate.
Aerospace-grade Aluminum Front Plate
The aviation-grade aluminum headpiece provides excellent protection for the lens, and it is embedded with custom silicone damping material, resulting in effective anti-vibration performance for the lens. The GyroFlow effect is enhanced for better stability.
Open-source 3D printing schematics are available, enabling you to print them with different thicknesses to accommodate various lens installations --> Download
100% efficient heat dissipation
We have found that the O3 video transmitter shuts down due to high CPU temperatures during prolonged high-temperature operation. To address this issue, we have specially designed a 7075-T aerospace-grade aluminum component for the O3 video transmitter, doubling its heat dissipation efficiency! Additionally, it features 20x20 mounting screw holes, making it compatible with Link, TX800, and other 20-hole video transmitters.
Custom-made aerospace-grade aluminum components.
Specially designed to solve the TF card insertion issue of O3 without disassembly. Easily insert the card without any hassle. It also features a dedicated frequency position for O3 and Link video transmitters, making it super convenient for Type-C connection!
Two battery installation methods.
Super convenient battery strap design allows for horizontal or vertical battery mounting.
Super durable injection-molded ring.
Made of high-strength imported composite material with built-in LED strip mounting groove.
Compatible with flight towers.
Supports installation of various flight towers and AIO (All-In-One) boards in sizes of 20x20, 25.5x25.5 (45° 90°), and 30.5x30.5.
20-hole MINI flight tower —— Recommended (Perfect fit)
25.5-hole AIO flight controller —— Recommended (Perfect fit)
30.5-hole standard flight tower —— Not recommended
(Installation is compact and requires some hands-on skills)
25.5-hole AIO flight controller —— Recommended (Perfect fit)
30.5-hole standard flight tower —— Not recommended
(Installation is compact and requires some hands-on skills)
Multi-function antenna mount.
Type-C adapter cable directly plugs into the flight controller without disassembling the aircraft.
Quick Release Solution
Only 6 screws are to be removed for freeing drone body and propeller guard.
Detachable damping gimbal, Convenient for mounting different cameras with damping.
Download the Manual
Download the Lens Damping Files
Features:
- 1.Customized aluminum alloy front end to effectively protect unobstructed O3.
- 2.Customized silicone gel shock absorption for the O3 lens, eliminating jelly effect.
- 3.Customized aluminum alloy heat dissipation device at the bottom, seamlessly integrated with O3 and SpeedyBee link transmission, while also facilitating Type-C and memory card insertion for convenient frequency adjustments.
- 4.Flight tower compatibility: Hole patterns for 2020mm/ 25.525.5mm/30.5*30.5mm.
- 5.Battery compatibility: Horizontal and vertical mounting design, eliminating concerns about difficult installation after zip tie breakage.
- 6.No need to disassemble for flight controller connection, supporting both Type-C and micro connectors for flight towers.
- 7.Highly durable injection-molded protective ring with built-in LED strip groove, facilitating LED strip installation.
- 8.Complete set of printed parts, including GoPro mount, 121GPS mount, multi-functional antenna mount, and T-shaped antenna holder.
- 9.Adjustable GPS mount compatible with both GPS and MASTER 5 V2 GPS mounts, with 121GPS mount included as standard.
- 10.Supports detachable shock-absorbing gimbal (not included in standard package).
Specifications:
- Wheelbase 153mm
- Top Plate Thickness 3.5mm
- Bottom Plate Thickness 2mm
- Camera Mounting Distance 19/20mm
- ESC/Motor Mounting Height 24mm
- Flight Stack Mounting Holes 20*20/25.5*25.5/30.5*30.5mm
- Video Transmitter Mounting Holes 20*20/25.5*25.5
- Propeller Size 90mm
- Motor Mounting Holes 12*12mm
- Weight 138g
- CNC Heat Sink 15g
- Camera Gimbal 28g
- Recommended Motor 1806/2004/2006
- Recommended KV 4S/2500-3500KV,6S/1800-2300KV
- Recommended Battery 900-1500mAh 4S/6S
Package Includes:
