TUNERC 3.5″ Carbon Fiber Frame (Separate Arms) FPV Frame Kit

TUNERC 3.5″ Carbon Fiber Frame (Separate Arms) FPV Frame Kit

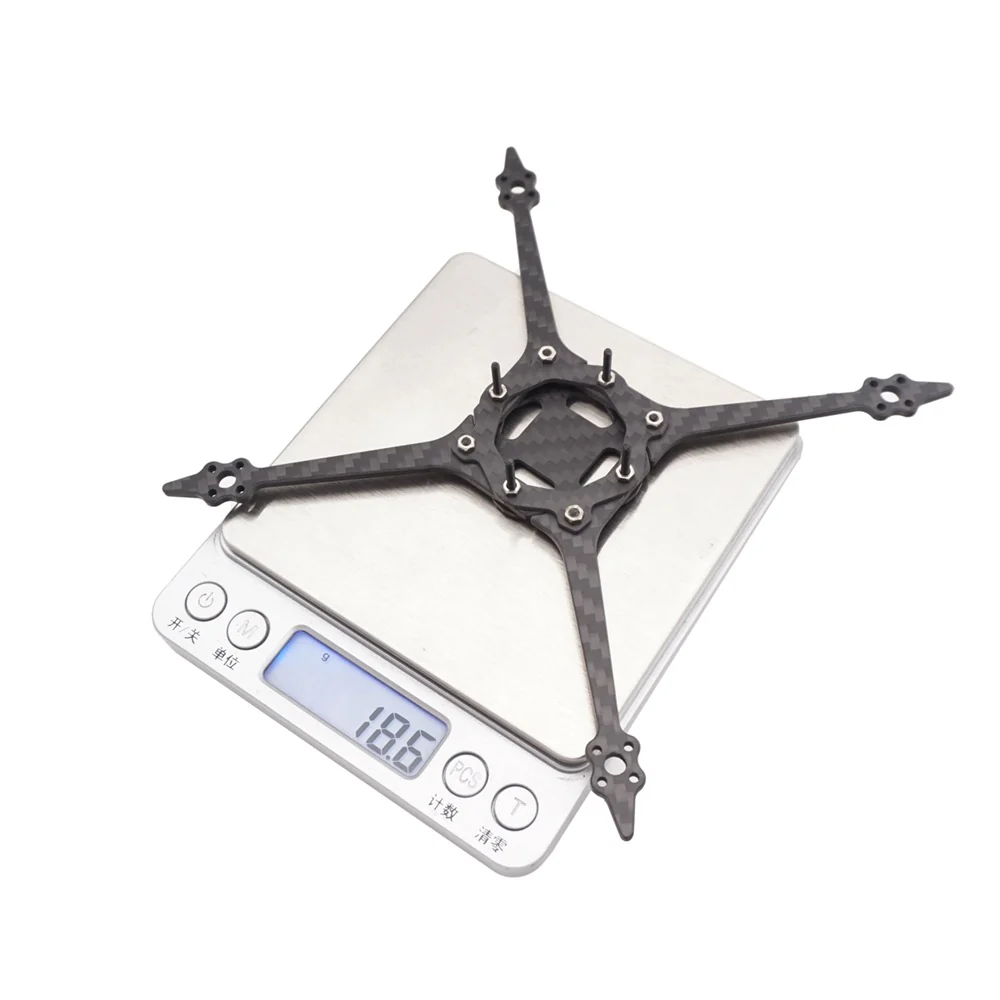

This fresh new 3.5″ frame is specifically designed for lightweight, quite and agile 3.5″ toothpick builds. Fits 25.4mm x 25.4mm mounting pattern AIO board, 9mm x 9mm mounting pattern motors. It only weighs 18.6g, with four arms+ two plates and hardware. Separated arms design makes it easy and cheap to maintain. Dedicated room is reserved for you to tuck the battery strap through the frame, so your build looks much cleaner. Carefully crafted DJI O3 air unit mount makes the air unit fit perfectly on this X configuration frame.

Check out all our  3" Frames and the rest of our TUNERC Products Collection.

Tip for frame assembly: we highly recommend using medium strength threadlocker during screw installations, this could prevent the screws from loosening during flight.

Specifications:

  • Diagonal Length: 154mm
  • Arm Thickness: 3mm
  • Middle Plates Thickness: 1.5mm

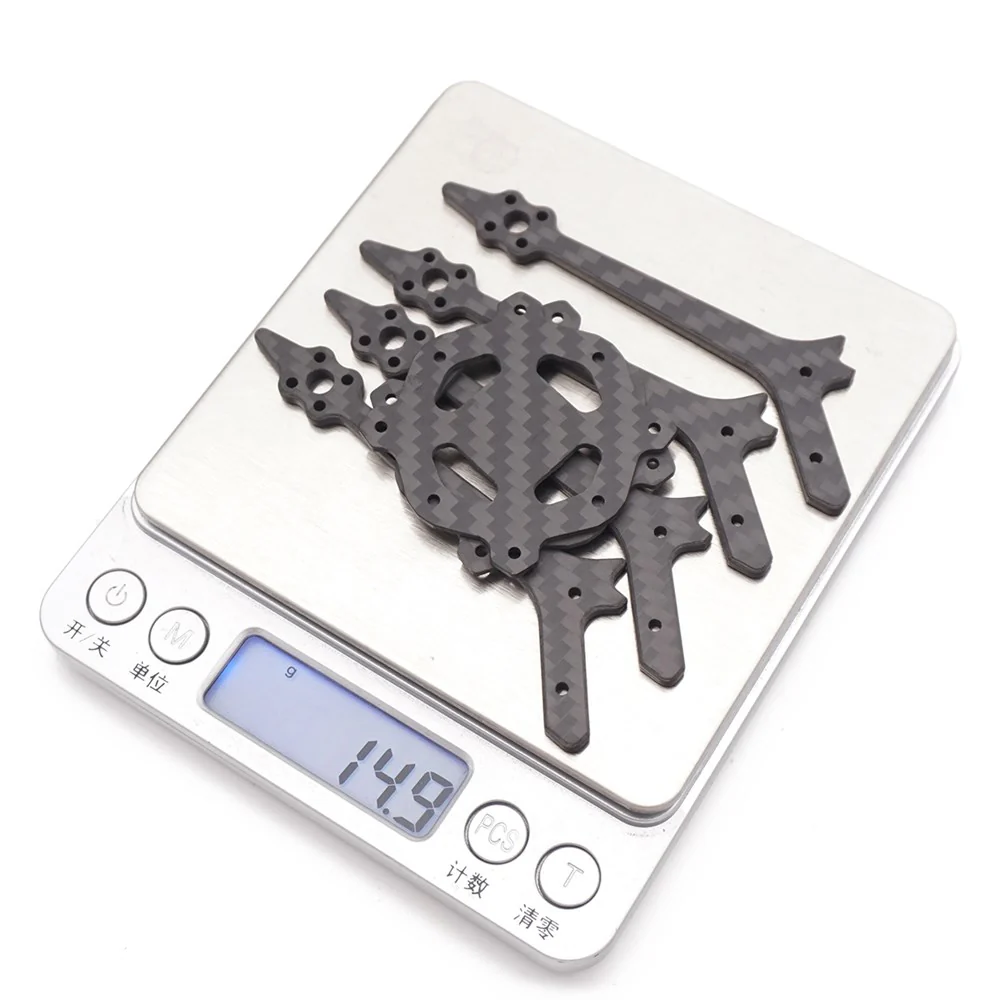

  • Weight: 15g (4* frame arms+ 1* top plates+ 1* bottom plates)
  • AIO mounting pattern: 25.4mm x 25.4mm
  • Motor mounting pattern: 9mm x 9mm
  • Arms are well chamfered



 Recommended Build:

  • Motor: TUNERC 1104 3600KV motors
  • AIO: Poly F405 2S-4S AIO
  • Props: HQ 3.5 x 2.5 x 3
  • VTX: Analog/ DJI O3 air unit
  • Battery: 3S 450mah-4s 450mah



3D Printed Canopy Files



Assembly Guides:

3.5inch Frame Assembly Guide for Analog Build

3.5inch Frame Assembly Guide for DJI O3 build

3D Printed DJI O3 Air Unit Mount Assembly Guide

3.5inch Frame+DJI O3 Air Unit Mount Assembly Guide


Package Includes:

  • 4 * frame arms
  • 1 * top plates
  • 1 * bottom plates
  • 1 * battery strap (suitable for 3s 450mah battery)
  • 4 * M2 x 8 socket head cap screws, 4 * M2 x 18 socket head cap screws, 8* M2 nuts
    $16.99
