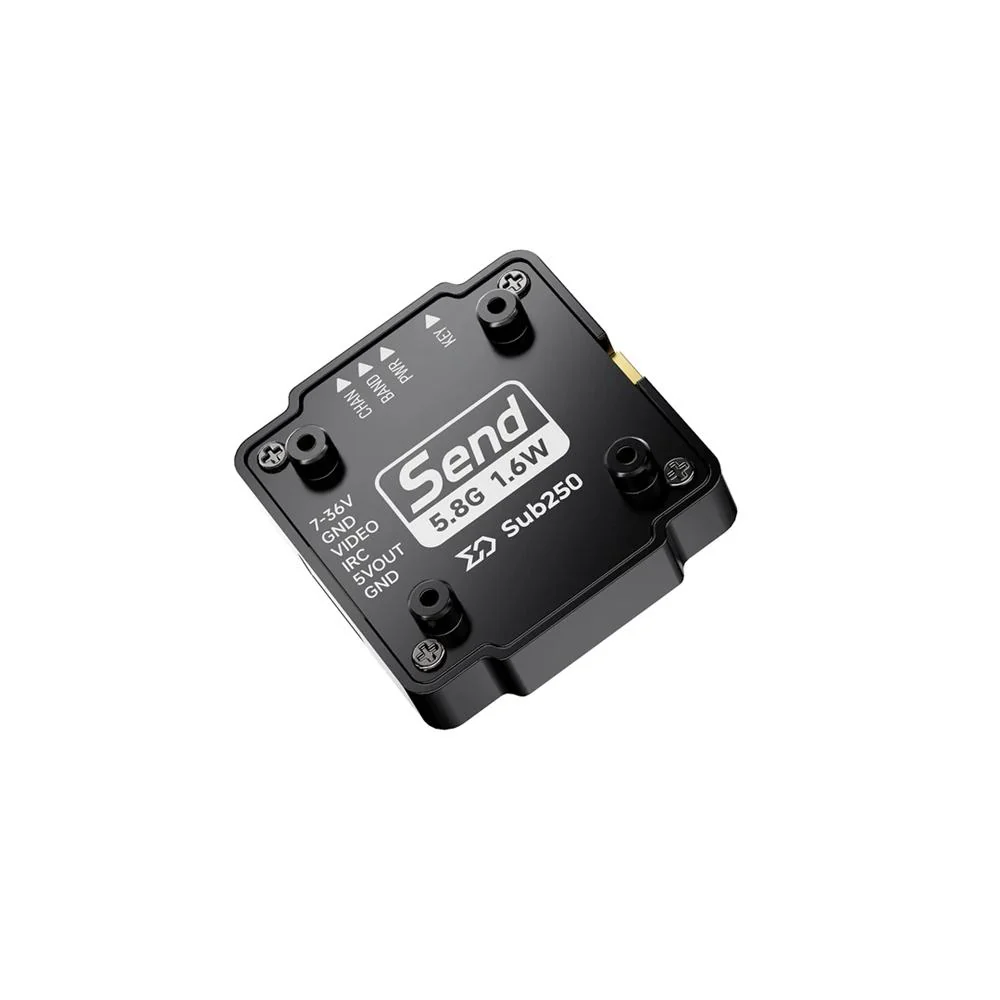

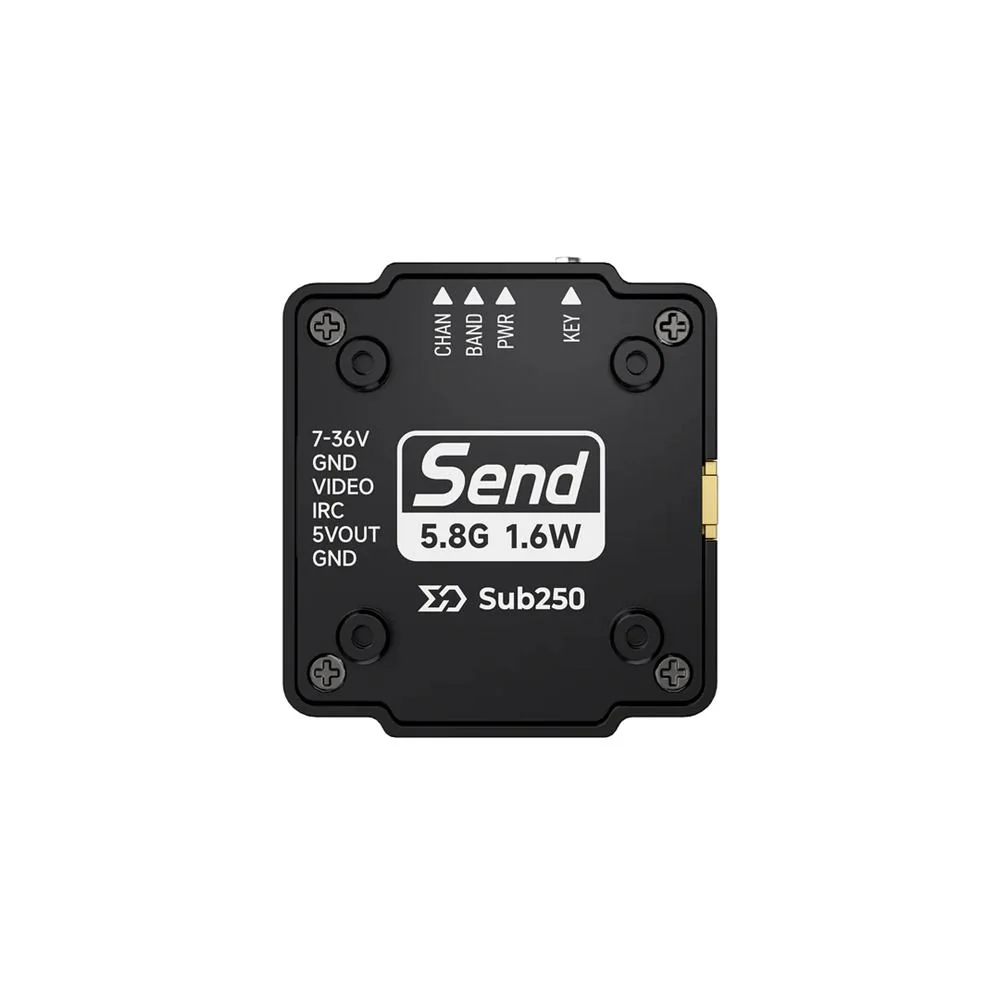

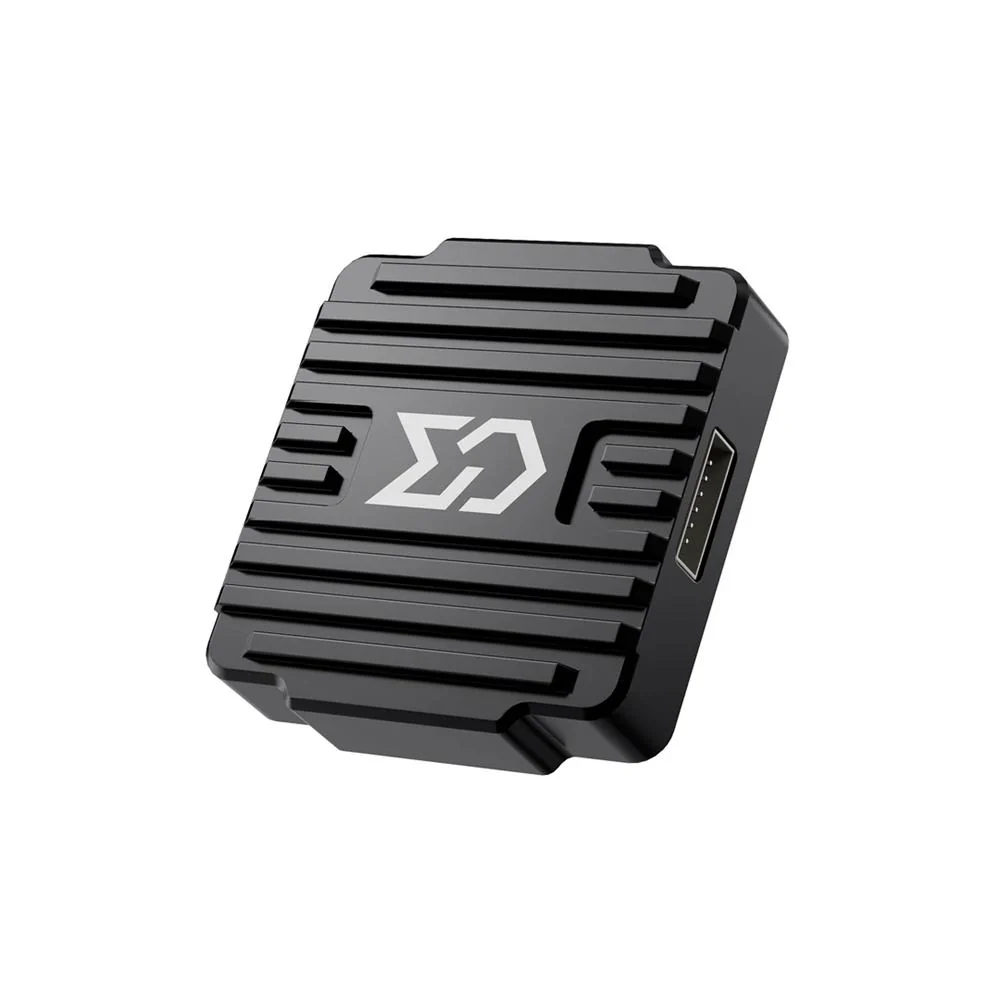

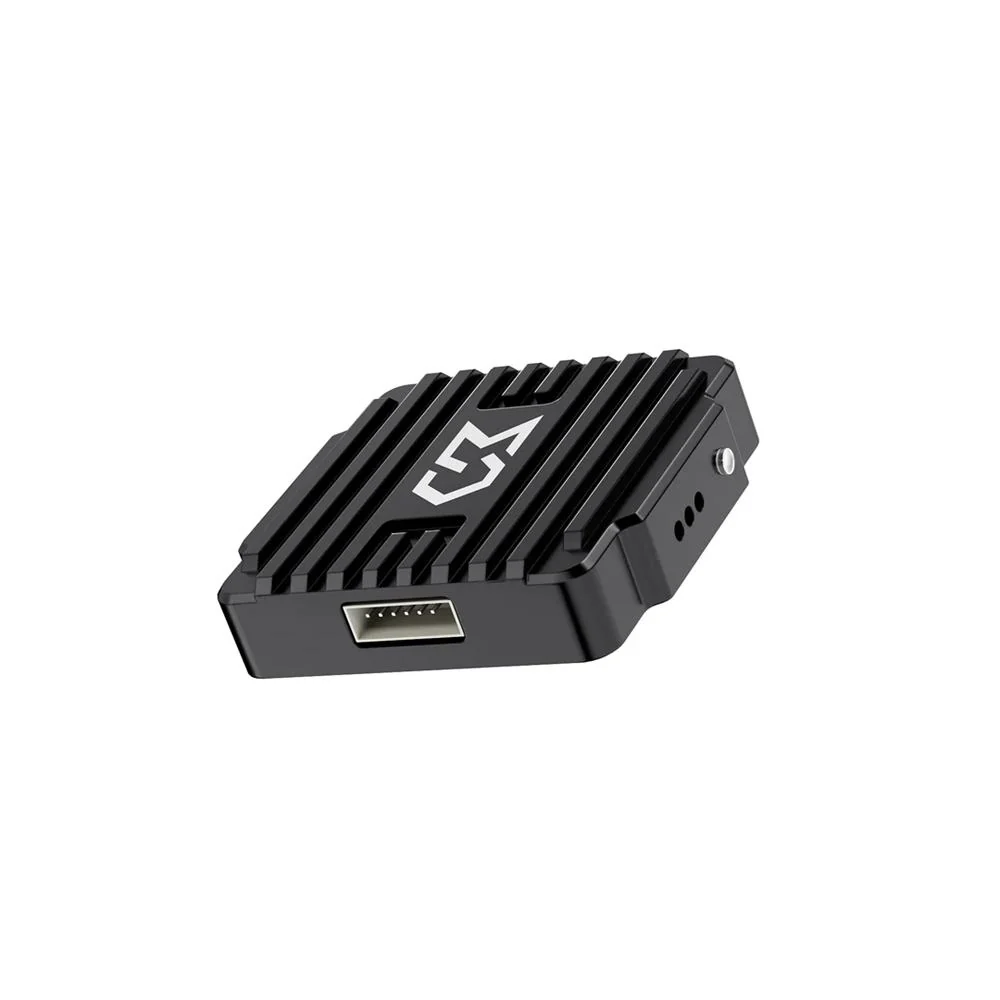

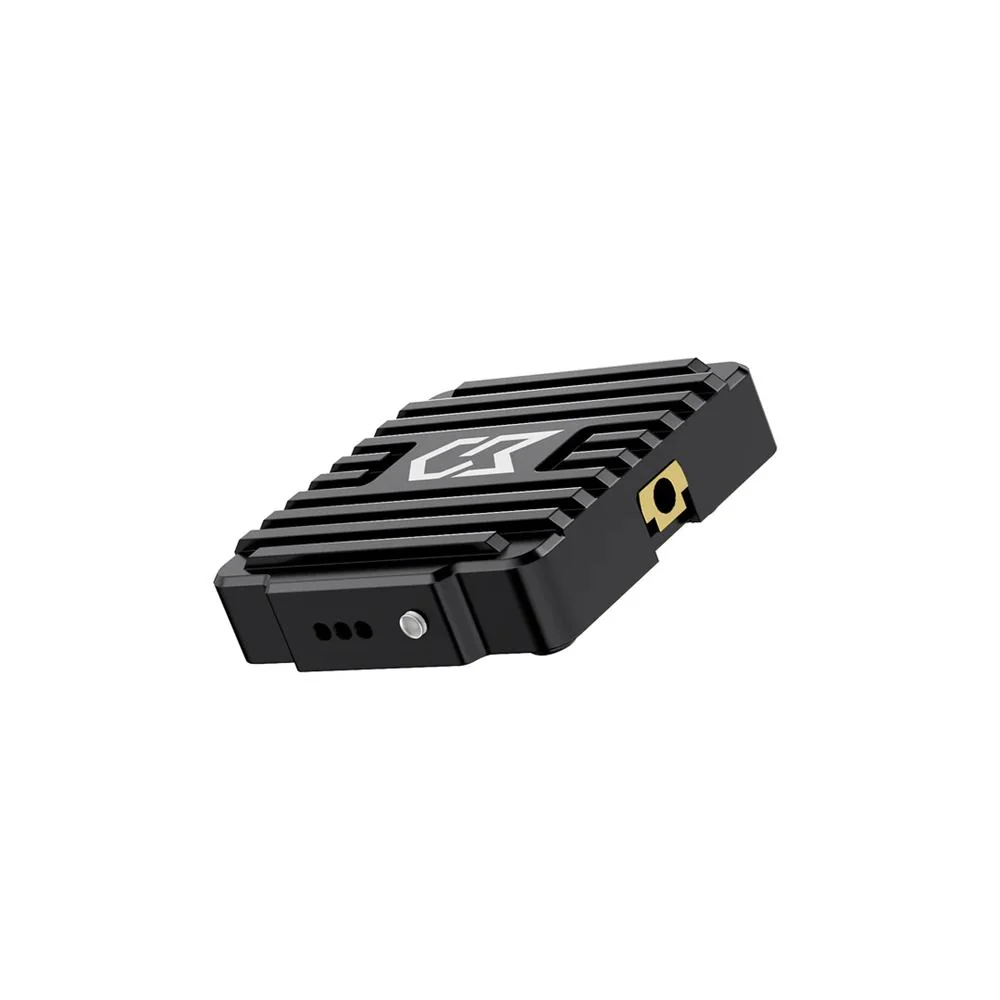

Sub250 Send T1600 VTX



The Sub250 Send T1600 VTX 99 offers robust performance in a compact design, delivering up to 1600mW for reliable long-distance video transmission. It features four power settings and a sturdy CNC aluminum casing that enhances durability and optimizes heat dissipation. Equipped with temperature control protection, it prevents overheating damage. The unit supports a wide voltage range from 7V to 36V and includes 48 transmission channels. With IRC Tramp VTX control protocol, OSD parameter adjustment, a built-in microphone for live audio, and a single function button accompanied by three status indicators, it ensures precise and user-friendly operation.



Check out our Analog VTX selection and the rest of our Sub250 Products

Features:

•  Compact yet powerful, up to 1600mW for clear long-range video

•  Four adjustable power levels

•  Rugged CNC aluminum shell for added durability and superior heat dissipation

• Temperature control protection function prevents burns from overheating

• Wide voltage input supports 7V-36V voltage input

• Supports 48 transmission channels

• VTX control protocol IRC Tramp supports OSD parameter adjustment

• Built-in microphone for real-time audio transmission

• One function adjustment button, three indicator lights for easy operation

Specifications:

• Model：Sub250 Send T1600 VTX

• Channels: 48 CH

• Output power：25mW/200mW/600mW/1600mW/Pit mode

• Input voltage：DC7-36V（2-8S Battery）

• Output voltage：5V@600mA

• Protocol：IRC Tramp

• Antenna interface： MMCX

• Mounting hole：20x20mm(M2)

• Cable interface：sh1.0 6pin

• Dimension: 35x32x11mm

• Weight: 15.9g

Package includes:

• 1 x Sub250 Send T1600 VTX

• 1 x sh1.0 6P Connecting cable

• 1 x MMCX Copper tube antenna

• 1 x MMCX to SMA (center hole)connector

• 6 x M2*5 screw
