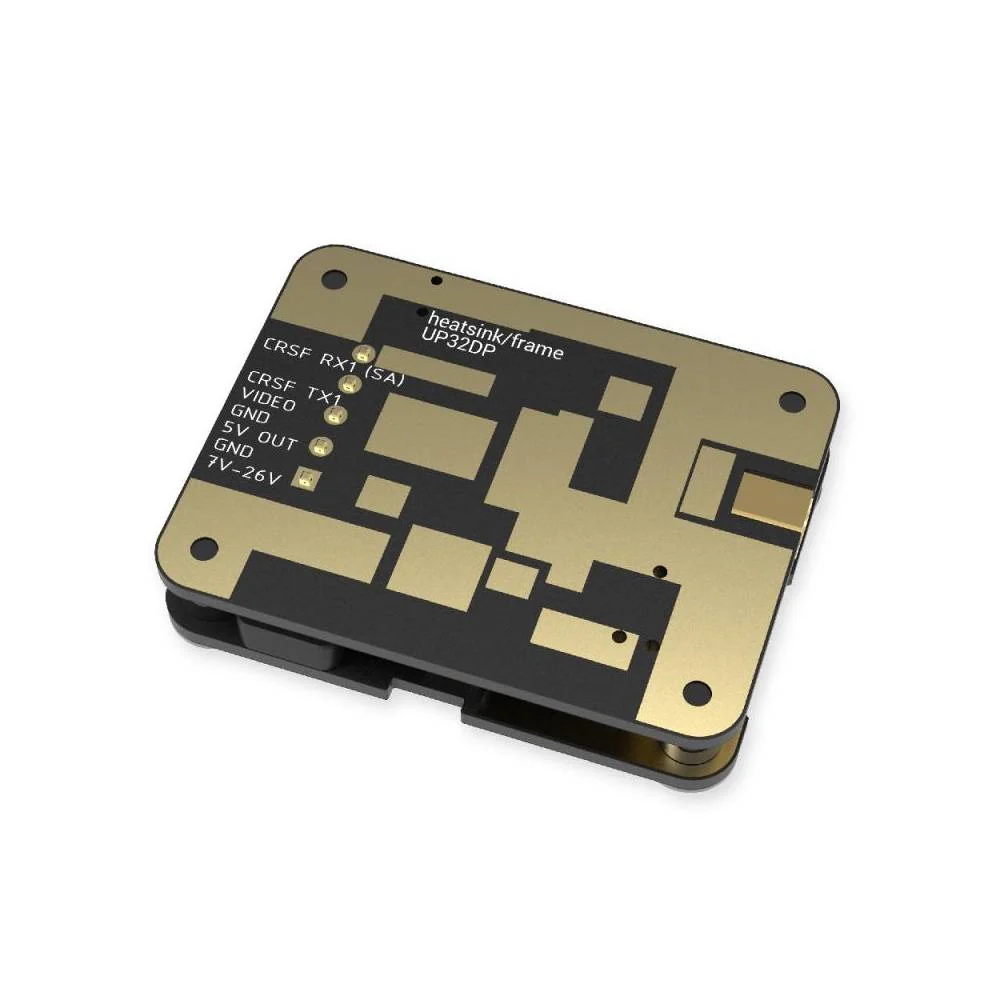

TBS Unify Pro32 DP (MMCX) VTX - NDAA

The TBS UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. It features improved robustness, decreased size, and reduced power consumption. Enhanced performance and durability are achieved through advanced heat dissipation, which requires no additional heatsink or fan. NDAA-Compliant for added security and compatibility.

You can also add the TBS Unify Pro32 DP Heat Sink for better cooling, Enhanced performance and durability.

Check out all out Analog VTXs and the rest of our TBS collection!

Features:

• Optimized Heat Dissipation
• Double Noise Filtering
• Optional Accessory
• Lightweight Design
• OSD Configuration
• One-Button Setup
• 2-6S Input Voltage
• NDAA Compliant
• MMCX Connector
• Frequency Range
• LUA Support


SPECIFICATIONS:

• Output Power: 14 dBm (25 mW), 20 dBm (100 mW), 26 dBm (400 mW)
• Operating Voltage: 6V - 25V (2 - 6S)
• Video Input Impedance: 75 Ohm
• Dimensions: 37 x 28 x 10 mm
• Antenna Connector: MMCX
• Video Format: NTSC/PAL
• NDAA Compliant: Yes
• SNR: >63 dBm
• Weight: 8.7 g


Package Includes:

• 1 x TBS Unify Pro32 DP VTX - NDAA
• 1 x Hardware Set
