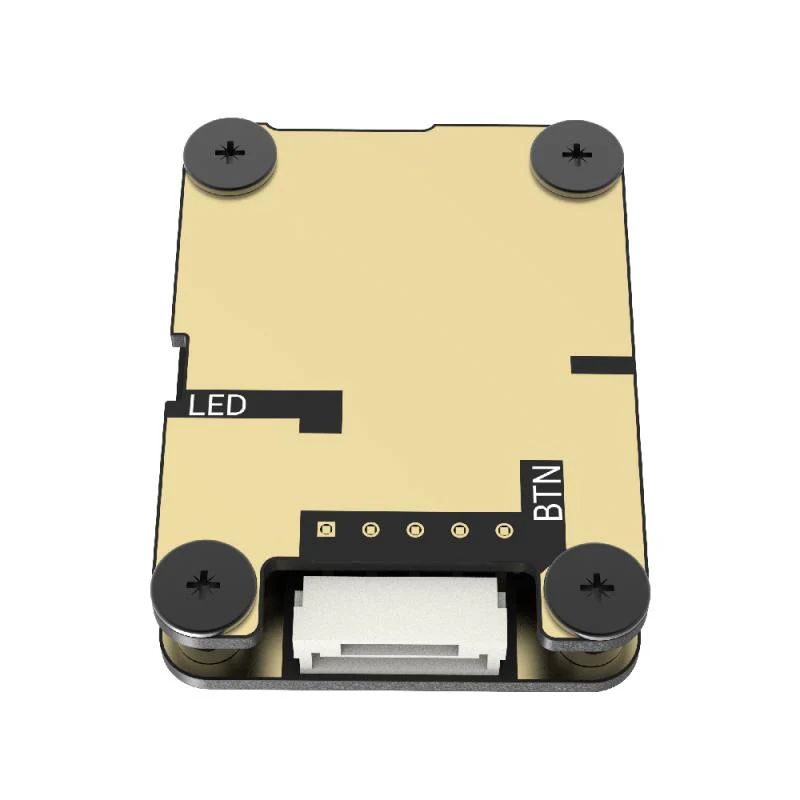

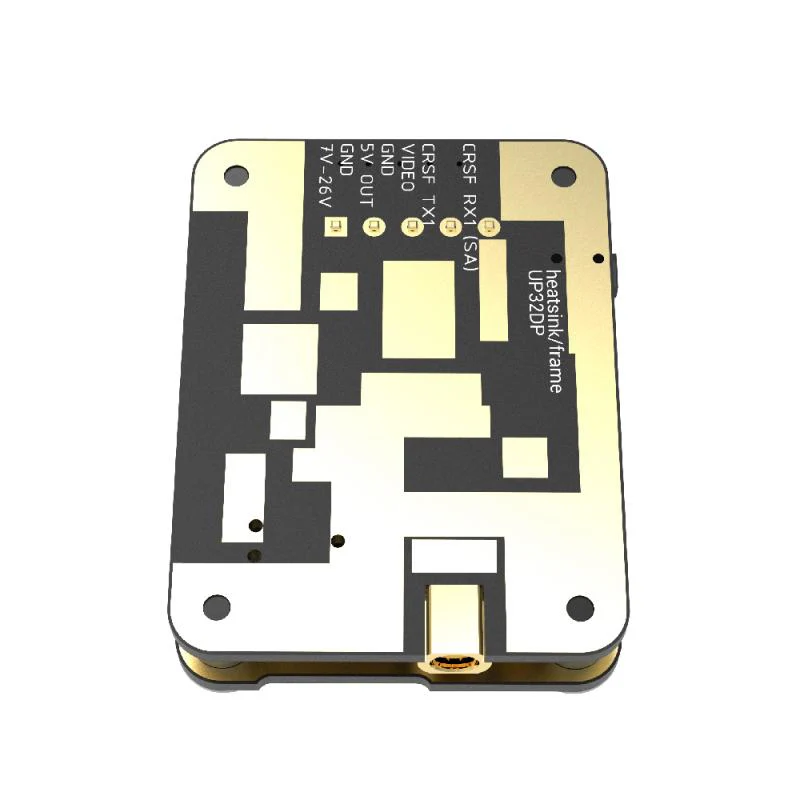

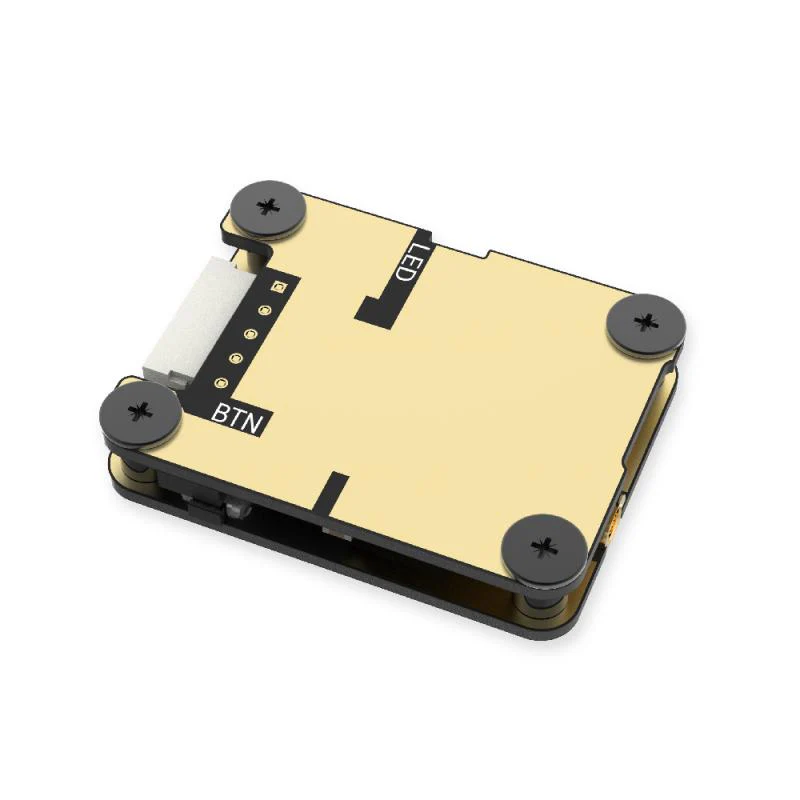

TBS Unify Pro32 DP (MMCX) VTx Video Transmitter
The TBS UNIFY PRO32 DP (MMCX), is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption.
You can also add the TBS Unify Pro32 DP Heat Sink for better cooling, Enhanced performance and durability.
Check out all out Analog VTXs and the rest of our TBS collection!
Features:
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 MHz - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1
(via Betaflight, TBS Crossfire / Tracer or Ardupilot) - One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
SPECIFICATIONS:
- Operating Voltage 6V - 25V (2 - 6S)
- Video Input Impedance 75 Ohm
- SNR >63dBm
- Weight 8.7g
- Dimensions 37 x 28 x10mm
- Antenna Connector MMCX
- Video Format NTSC/PAL
- Output Power 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 33dBm+ (2000mW+)
Package Includes:
- 1 x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
- 1 x Silicone cable (ends pre-tinned)
- 1 x MMCX to SMA pigtail
- 1 x Heat transfer tape for easy FPV drone mounting
$18.60
Original: $61.99
-70%TBS Unify Pro32 DP (MMCX) VTx Video Transmitter—
$61.99
$18.60
